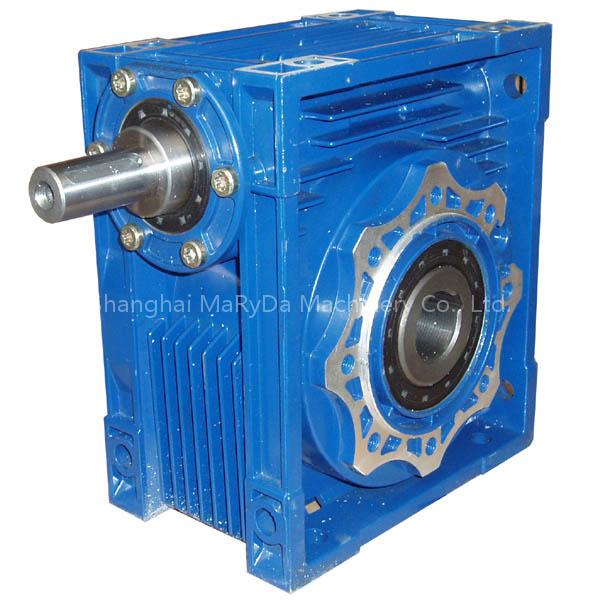

RV reducer

High quality aluminum alloy, elegant appearance, efficient radiator, high carrying ability. Installed in multiple surfaces, hollow output shaft, various input and output types, conjoins other transmission machinery easily.

1) Small size, compact, lightweight, and saves space for mounting2) Runs steadily with low noise3) High reliability and high efficiency4) Specification: RV25-110 type totally (RV25-90 is aluminum alloy housing, RV110type is casting iron housing)5) Input power: 0.04-22kW (four-stage motor)6) Output torque: 10-2,320N.m 7) Transmission ratio: 7.5-100 (specification RV25 without 80, 100 transmission ratio, specification RV30 without 100 transmission ratio)8) By motor direct connection with IEC flange or shaft input, shaft and hollow shaftoutput form: by feet, shaft installation and flange mounting formsPacking:Standard export packing
