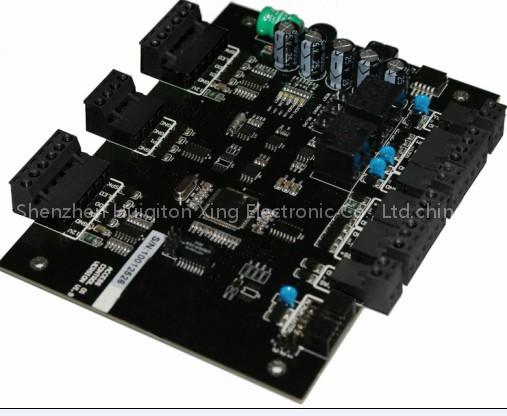

RS485 controller

RS485 controller l"Hand shaking” networking system, per RS485 bus connects 255 machines.lWeb Base (Browser/Server) or Customer/Server software.l*ACCESS or SQL SERVER Software database.l*Interface Documents are suitable for any computer operation system and software database developing.l*Connected with Weigand26 for wiegand 34 reader.

Single door controller, two door controller and four door controller, with entry and exit card reader input ports.l*Can be compatible with HID, TI, EM and MIFARE readers.l*Support Keyboard reader, realizing card and password double authentication.l*Have input ports for push button, door sensor and fire alarm, support fire auto-alarm function.l*Photoelectric isolation and dynamic protection when input and output, transient overvoltage protection of all the relay. l*Can work offline, 10000 cards, and 30000 offline records.l*Data memory function, back-up battery can ensure the terminal working without power.l*Basic function: door sensor alarm, card and password auto-switched, input alarm, first cardSetting, double door linkage; threaten password, door often-open status setting, anti-pass back, electronic map, remote control, real time monitor. l*Electrostatic prevention, lighting protection, leakage prevention design.
