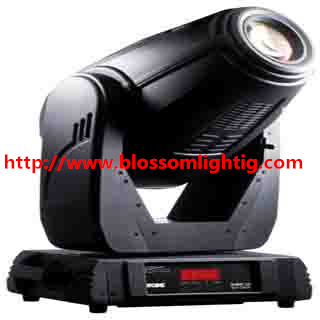

ROBIN® 300E Spot (BS-4010)

Onboard is a package of specially designed modular features including a large 10° – 40° zoom, CMY+CTO, static and rotating gobo wheels, colour wheel, frost, iris and many more.

ROBIN® 300E Spot light is a neat, punchy profile fixture with superior functions such as a large linear zoom and dynamic hot-spot control, ideal for a wide range of applications.

A full package of rotating and static gobos plus full CMY+CTO and colour wheels give a standard base for any show. Advanced features like variable frost, linear iris, rotating prism and speedy mechanical shutters provide subtle and detailed in-tuning.

Source .Lamp: Compact high-presure metal halide lamp .Base: PGJX28 .Approved model: Philips MSD Gold 300/2 MiniFastFit .Control: Automatic and remote on/off .Ballast: Electronic

Optical System .Dichroic glass reflector for maximising the light efficiency .Beam angle: 10° – 40°

Electrical Specification .Power supply: Electronic auto-ranging .Input voltage range: 100–240 V, 50/60 Hz .Power consumption: 450 VA at 230 V/50 Hz

Mechanical Specification .Height: 516 mm (20.3″) – head in horizontal position .Width: 433 mm (17.0″) .Depth: 470 mm (18.5″) .Weight: 20 kg (44.1 lbs)

Thermal .Maximum ambient temperature: 45 °C (104 °F) .Maximum surface temperature: 80 °C (176 °F)

Static Gobos .Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm

Rotating Gobos .Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass

Control and Programming .Setting & Addressing: ROBE Navigation System 2 (RNS2) .Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2 .Control channels: 23, 25, 32 .3 DMX protocol modes .3-editable programs, each up to 100 steps .Stand-alone operation

Display: .QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC .Pan/Tilt resolution: 16bit .Movement control: Tracking and vector .Colour wheel positioning: 8 or 16bit .Static gobo wheel positioning: 8 or 16bit .Rotating gobos: 8 or 16bit .Iris: 8 or 16bit .Frost: 8bit .Focus: 8 or 16bit .Dimmer: 8 or 16bit .Ethernet port: Art-Net protocol, ready for ACN .Data in/out: Locking 3-pin & 5-pin XLR .Built-in analyser for easy fault finding .Optional wireless version available: CRMX™ technology from Lumen Radio

Electromechanical Effects .Cyan: 0–100% .Magenta: 0–100% .Yellow: 0–100% .CTO: 0–100% .Hot-spot control: Hot-or-not-spot .Colour wheel: 7 replaceable ″SLOT&LOCK″ dichroic filters + open, trapezoid shape .Static Gobo wheel: 9 replaceable ″SLOT&LOCK″ metal gobos + open .Rotating Gobo wheel: 7 rotating, indexable, replaceable ″SLOT&LOCK″ dichroic and glass gobos + open .Iris: Motorized, stepless, up to 3 Hz .Prism: 3-facet 11° indexable prism rotating in both directions at different speeds .Frost effect: Separate, variable .Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing ″ZAP″ .Motorized zoom and focus .Pan: 540° .Tilt: 280°

Rigging .Mounting points: 2 pairs of ¼-turn locks .Fixation option: Pan/Tilt-lock mechanism .2 x Omega bracket with ¼-turn quick locks .Safety chain/rope attachment point
