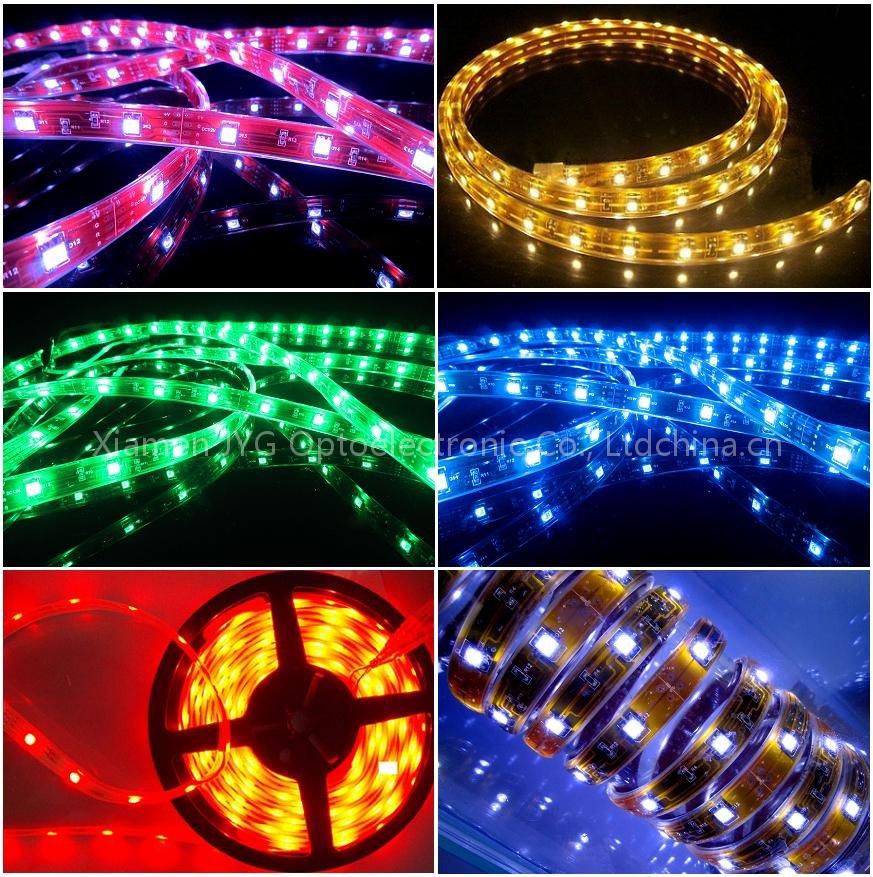

RGB SMD 5050 LED Strip Light
Specifications
- Brand
- JYG
- Origin
- China (Mainland)
RGB SMD 5050 LED Strip Light is a Holiday Lighting product. Key specs — Brand: JYG; Origin: China (Mainland).
Product Description
nbsp;RGB LED Strip Light
Input Voltage:DC12V
Power:36W,72W / 5Meters
30,60 LEDs/M 5050SMD
High efficiency,low consumption,CE,RoHS
nbsp;
Waterproof 5050 RGB LED Strip Light(60 LEDs/M)
Products Feature:
- The thickness of the wires should be adopted based on the possible maximum current, length of wires (10m in maximum is recommended) and the loss in the wires during transit at low voltage.
- Two ends of connection should be done as waterproof.
- No touch in static, no work in electricity.
- The maximum length is 5m, no exceeding in connection.
- Quality power supply is recommended (with short circuit protection, high voltage and power load protection)
- It can be cut at the mark of the connection and there will be no affect to its function.
Specification
LED type | 5050 SMD LED | |
Available colors | Full color | |
Viewing angle(θ) | 120° | |
Luminous flux(lm) | ||
Red | Green | Blue |
330 | 960 | 240 |
Wavelength(nm/K) | ||
Red | Green | Blue |
619-635 | 512-528 | 463-475 |
LED qty/5m | 300pcs | |
Life span | 50,000h | |
Electric parameter | ||
Working voltage(V) | DC12V | |
Power consumption(W) | Max:72W | |
Driving method | Constant voltage | |
Wires & series connection length | ||
Input connect single 4 core Y,R,G,B Wire, Yellow color connect + Red color connect R, Green to G, Blue to B | ||
Standard length in serial connection | 5m | |
Maximum length in serial connection | ≤10m | |
Outer Parameter | ||
Shell | Epoxy resin / Silica gel | |
PCB Color | Yellow & white | |
Dimension | 5000*10mm*3mm (IP65) 5000*12mm*4mm (IP68) | |
Fixed mode | ||
Screw | / | |
Double-side adhesive | 5000*12mm, 3M double-sided adhesive with mounting clips | |
Environment Parameter | ||
Working Temperature | -40°C- +50°C | |
Storage Temperature | -50°C- +60°C | |
IP grade | IP65/IP68 | |
Applications:
1) Car decoration
2) Architectural decorative lighting
3) Archway, canopy and bridge edge lighting
4) Amusement park, theater and aircraft cabin mood lighting
5) Emergency hallway lighting
6) Auditorium walkway lighting
7) Stairway accent lighting
8) Concealed lighting
9) Backlighting for signage letters
10) Channel letter lighting
11) Emergency exit path lighting
12) Cove lighting
