RGBS to VGA converter

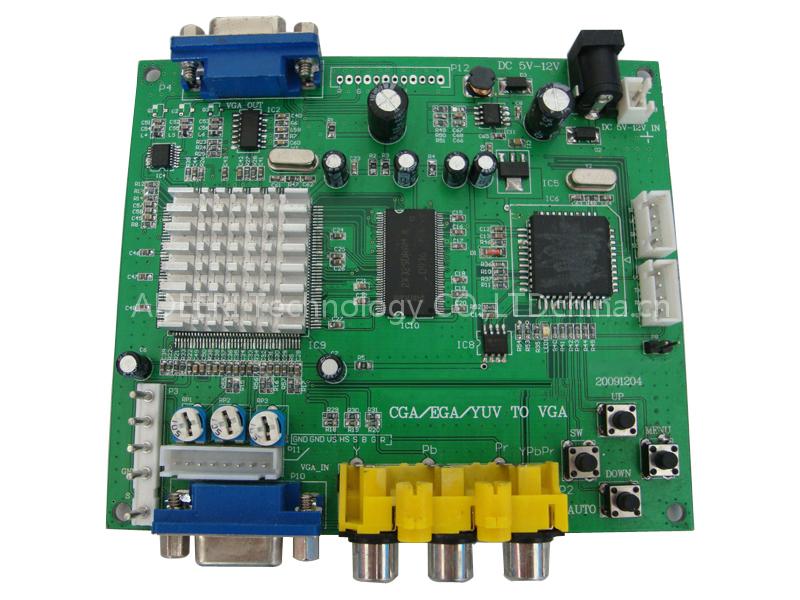

RGBS,CGA,EGA,Ypbpr,YUN to VGA Converter(Model:ADR-S801) PCB board is designed for application in Industry and Gaming. Used for the easy upgrade of old monitors to modern display screens. It accepts and converts input signal timings of CGA, EGA, High Definition 480–1080p/i and VGA for output at resolutions of slectable VGA, SVGA, XGA or HDTV.
It has a high compatibility with the majority of Video Systems as found in Industrial CNC machinery and Gaming cabinets. The output will support all CRT, LCD and PDP monitors. Now the retro-fit of older, superceded monitors is easy. The upgrade replacement monitors can also be better utilised for superior display of information and video using OSD options and colour adjustment pots.

Functions

- Supports CGA / EGA / YCbCr / YPbPr/YUN signal inputs
- Input Connection (selectable): RGBS- 5 pin, RGBHV- 8 pin, VGA- 15 pin, Component RGB– 3AV.
- Output Connection: Dual VGA- 15 pin, Dual VGA- 12 pin.
- Supports VGA Output : VGA (640x480), SVGA (800x600), XGA (1024x768), HDTV (1360x768)
- Input Signal Auto Scan: CGA (14.5-16.5KHz) / EGA (23.5-25.5KHz) / VGA (30.5-32.5KHz)
- Input Signal Auto Scan YCbCr / YPbPr: (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
- English and Chinese On Screen Display menu.
- Supports Output Resolution control, Position control & Zoom control.
- Digital 24-bit A/D converter for true 16.7-million color conversion.
- Supports all VGA monitors (CRT, LCD, PDP)
- Supports Gaming: ICB CM99, CYE, Amatic, Jolly Joker, Cuty Line, Dyna X, Psikyo, Bigigo
- Supports CNC Machinery: Drilling, EDM's, Lathes, Milling, Routers, Cutting, Welding, Grinding
