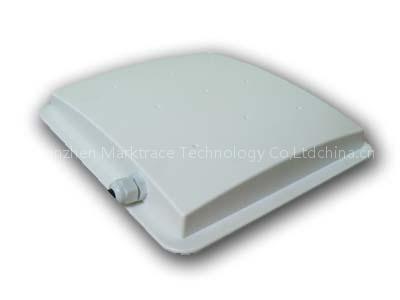

RFID UHF Integrative Reader(6m)
Listing ID#10167281
ModelMR6021A
CategoryOther Safety Products

RFID UHF Integrative Reader(6m)

Specifications

Origin
Shenzhen
Request Quote
Quick answer

RFID UHF Integrative Reader(6m) is a Other Safety Products product. Key specs — Origin: Shenzhen.

Product Description

nbsp;The products can be compatible with multi- of direction for tag,proof-water, can be used widely in RFID systems,the mainly applying site is:1. Logistics and warehouse Management:Goods flow,warehouse management,and the flowing management of mail,parcel,luggage.2. Intelligent parking Management :Parking management and automatic charge3. Productive lines Management: Production process fixed identication4. Product counterfeit-proof inspection:Using memory’s write-protect functions inside tags,and identifying with true-false of products5. Other fields:Used widely in club management,library,student’school,consumption management,time management,dinner management,pool management Capability specifications

Scanner ModelMR6021A
ProtocolISO18000-6B ISO18000-6C(EPC GEN2)
Frequency RangeISM 902~928MHZ (FCC)or 920~925MHz (CHN)
Operation ModeFixed Frequency or FHSS Software Programmable
RF Power Output 0~30dBm
Reading RateSoftware Programmable,Average Reading per 64Bits:<10ms
Reading ModeAuto And Touch or Software Programmable
Communication Ports1.RS2322.RS485 (Syris485)3.Wiegand26/34 Software Programmable
Data InputInput One Team
Reading RangeReading Tag >6 m
Reading ClueBuzzer
Antenna Built-in Antenna,Gain:7dbi
Power ConsumedDC +9v AC~DC Adapter,less than 3 Amps
Dimension240mm X 240mmX30mm
Avoirdupois1 Kg
Operation Temp- 20 ℃ ~ + 80 ℃
