REGISTED POSITION EMBOSSER
Listing ID#10222575
ModelYM-MYM-800A
CategoryOther Laser Equipment
Other Laser Equipment

REGISTED POSITION EMBOSSER

Specifications

Origin
Guangdong
Request Quote
Quick answer

REGISTED POSITION EMBOSSER is a Other Laser Equipment product. Key specs — Origin: Guangdong.

Product Description

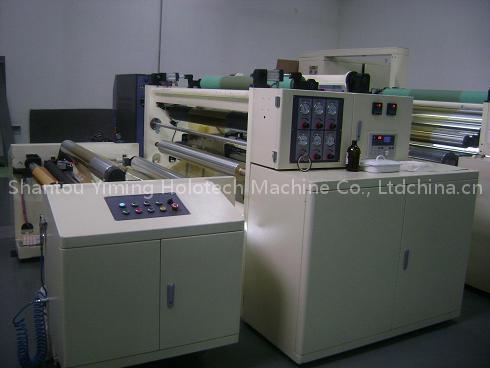

YM-MYM800A HOLOGRAPHIC HARD EMBOSS MACHINE
Basic Specifications
width of embossed film: 800 mm
embossed material: coated BOPET 12?50?/DIV>
max. machine working speed 60 m/min
max. diameter of unwinding and rewinding 800 mm
tension adjustable 0-300 N all the web path
Main size 4 x2.5 x1.5m
Main power 40kW
Main weight 3ton
meter counter 0 ?50000 m
all sealings withstand the required temperature of min. 23
control panel digital, LCD, Siemens
Machine color Color RAL 1015 light ivory, suitable use on 80~90% of machine surface
Web path As of Annex 1a
safety cover of all moving parts like gearwheels, chains, counter rotating rollers, potential free emergency stop system exhaust over oil roller comply CE
