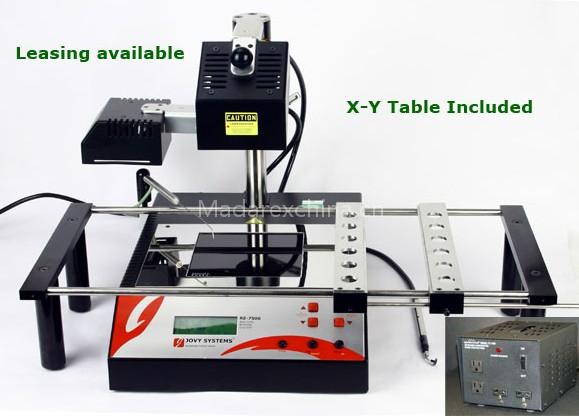

RE7500

Features (Lead free compatible)&nbsp Flexible uses for all different kinds of Components like SMD, BGA,&nbsp nbsp;CBGA, CCGA, CSP, QFN, MLF, PGA and All Epoxy undefiled µBGA .. etc . &nbsp Recommended for reworking All Plastic parts, PTH, Sockets,&nbsp nbsp;Connectors and Metal Shields . &nbsp Complete reworking Processes (Pre-Heating, Soak, Re-Flow&nbsp nbsp;& cooling) stages are achieved for an accurate and standard reworking process . &nbsp IR with no effect on adjacent Component . &nbsp Sensitive Temperature measurement sensor to obtain an accurate&nbsp nbsp;and instantaneous Temperature reading and monitoring.&nbsp Internal Picking System for Safe and Stable Removal of the ICs.

Manual or automatic (profiled) cooling system to achieve complete&nbsp nbsp;and Standard & cooling stage process for PCBs .&nbsp Guaranteed homogeneous and safe uniform heat distribution . &nbsp Programmable, Automated & dynamic control for the ER-7500&nbsp nbsp;heaters .&nbsp Guaranteed delivery of the heat energy at the precise time and&nbsp nbsp;location&nbsp Freely programmable temperature profiles .&nbsp Real time process monitor on your PC or Laptop .&nbsp Avoiding Hot and Cold spots occurrence with no nozzles focus hoods&nbsp nbsp;usage .&nbsp Optimal Tool for re balling&nbsp Positioning during rework process is applicable by using laser&nbsp nbsp;pointer on PCB Precise and smooth running X-Y table included with the package.&nbsp Easy & Friendly operation Via Automatic, Manual or PC Modes.&nbsp Ready for sophisticated future technologies.

One Year Warranty applies&nbsp nbsp;Field Of Application (Whole Range of Rework Applications) nbsp Medium & Large Scale Service Centers. Mobile and radio systems devices. Cellular phones, PDAs, Handhelds, notebooks & Motherboards. LAN devices, Network Nodes and Military communication Equipments.

Portable medical equipment RE JOVY Soft &nbsp 1- Fast USB Data Streaming and control for all&nbsp nbsp; Machine features and processes. &nbsp 2- Real Time PCB Temperature monitoring &nbsp 3- Complete Process Graph with Bitmap printing &amp nbsp; archiving. &nbsp 4- Two modes for temperature unit adjusting ( C' / F' )&nbsp 5- User Profile Creation and uploading&nbsp 6- Upload and adjust Machine setting (Sleep mode, Alarm sound, etc)&nbsp 7- Upload Factory initial Settings.&nbsp 8- Download & run ready made standard profile from&nbsp nbsp; Customer’s support Area. nbsp;&nbsp nbsp;Aspects and Specifications bull; Top heater Power : 300W bull; Pre heater Power : 600W bull; Voltage frequency : 220 volts 50/60 HZ bull; Max board Size : 350mm x 450 mm bull; Weight : 16KG nbsp; &nbsp nbsp
