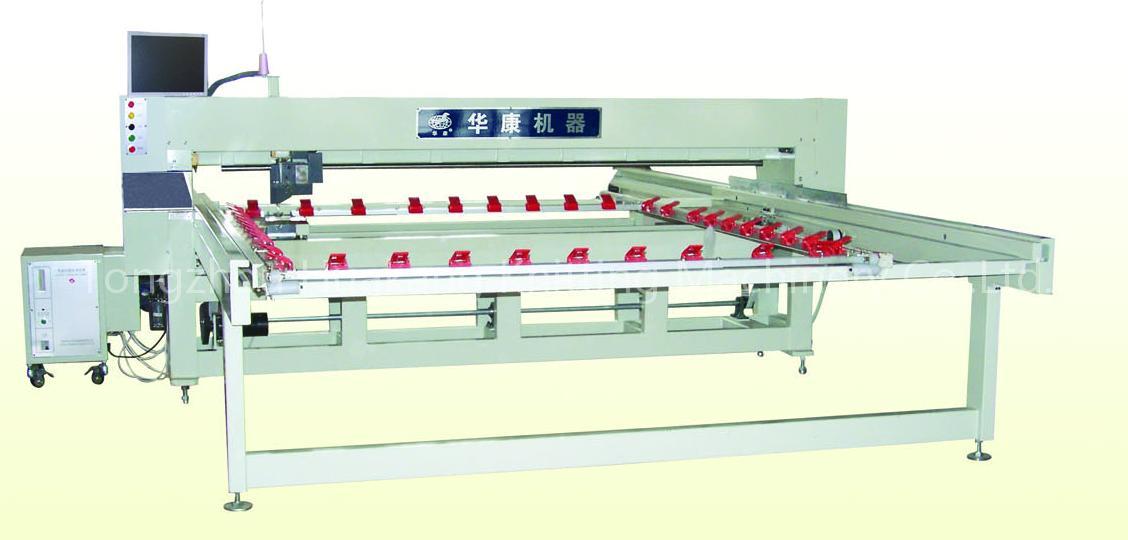

Name: Quilting machine
Brand: Huakang
SKU: HF

Welcome to Huakang

Exquisite Producing Process, Fine Quality Guarantee,Preceding step to Success if you choose Huakang Machine!

Huakang is the manufacturer of textile machines, who specializes quilting and knitting machines controlled by computer. With the advanced technology and outstanding equipments, we update our products and lead in the latest technology to our products all the while. Now, our machines have been used widely in home textile and knitted sweater manufacturers. We also provide fine after service, so do not hesitate now

Parameters of HFand HFL type Computerized Quilting Machine

Range of models	HF-26	HF-28	HFL-26	HFL-28
Max comforter size	2.6m×2.8m	2.8m×3.2m	2.6m×2.8m	2.8m×3.2m
Max quilting size	2.4m×2.6m	2.6m×3.0m	2.4m×2.6m	2.6m×3.0m
Sewing-Machine	Single-line style, double-line lock style, big Rotary Shuttle
Sewing thickness	1200 g/m2
Sewing Speed	2000SPM(adjustable)
Stitch	2~7mm
Needle	SINGER MR5 18~22#
Dimensions	5×4×1.4m	5.4×4.2×1.4m	5×4×1.4m	5.4×4.2×1.4m
Power	220VAC,50HZ,1.5KW
Weight	1700kg	1800kg	1000kg	1200kg

Features Specifications: computerized quilting machine

Ø Adopt alternating current Servocontrol system on movement of main shaft and X axis and Y axis. It runs stably with the lowest noise and high precision, and it can enhance work efficiency up to 20 percent in quilting complex pattern.

Ø Use industrial control system to keep the machine run reliably, main shaft is driven by inverter, movement of X axis and Y axis by step motor driver.

Ø Set latest industrial control mainboard, capable of copying pattern and other files from USB-disk, Capable of copying pattern and other files from USB-disk. Its convenient to copy or delete pattern files by pattern management function.

Ø With function of pattern viewing and rotating or mirroring pattern, capable of reading patterns of variety forms.

Ø Capable of counting output, and reboot to zero.

Ø Both forward and backward modes for retreat quilting, overlap stitch distance can be treated specially, and the stitch length can be changed.

Ø Trace seeking function makes needle quickly located in its position. Convenient in defining and revising frame range and pattern size with setting and modifying functions.

Ø Display quilting status at any time and prompt operation.

Ø Accompanied by change of defining pattern range and space, pattern size scales automatically.

Ø Single head, single needle, double-line locked style, big rotating shuttle.

Ø Self-detect breaking thread function, needle stays at upper position at pause time and machine stop working while thread breakage automatically.

Ø Return to original point automatically or manually, it will reduce unnecessary stops.
