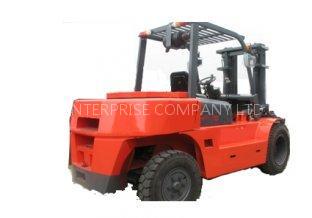

Quarry forklift truck 7T
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
Quarry forklift truck 7T is a Agriculture product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Model | CPCD50 | CPCD60 | CPCD70 | ||
Capacity | (kg) | 5000 | 6000 | 7000 | |
LoadCenter | (mm) | 600 | |||
Fuel | Diesel | ||||
Standard Lifting Height | B(mm) | 3000 | |||
Full Free Lifting | E(mm) | 160 | |||
Fork Size | LxUxN(mm) | 1220x150x60 | |||
Mast Tilt Angle | (°) | 6/12 | |||
Min.turning Radius | P(mm) | 3300 | 3450 | 3450 | |
Min.Right Angle Aisle Width(AST) | X(mm) | 3000 | 3090 | 3090 | |
Ground Clearance | H(mm) | 150 | |||
Safeguard Height | D(mm) | 2500 | |||
Front Overhang | G(mm) | 635 | |||
Rear Overhang | J-G-F(mm) | 600 | 720 | 720 | |
Max.Drive Speed | (km/h) | 24 | |||
Gradeablity | (%) | 20 | |||
Lifting Speed(With Load) | (mm/s) | 390 | 360 | 360 | |
Length to Face of Fork | J(mm) | 3472 | 3592 | 3592 | |
Overall Width | W(mm) | 1995 | |||
Closed Mast Height | C(mm) | 2519 | |||
Front/Rear Wheel | 8.25-15-14PR | ||||
Wheelbase | F(mm) | 2250 | |||
Tread(Front Wheel) | Q(mm) | 1470 | |||
Tread(Rear Wheel) | S(mm) | 1700 | |||
Overall Weight | (kg) | 8000 | 8840 | 9350 | |
Battery | |||||
