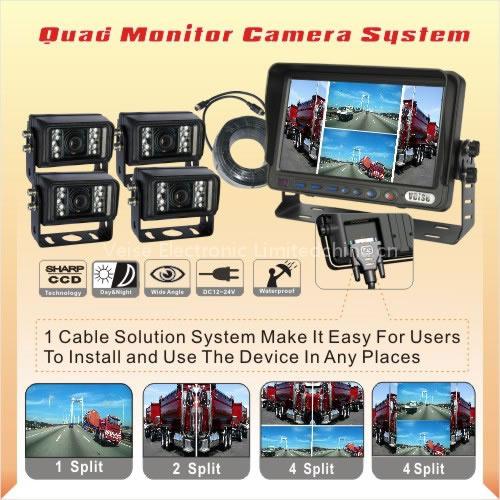

Quade Monitor Camera System
Specifications
- Origin
- 3F, No.18th, HuaYuan St., Shatai Rd., Baiyun distr
- Price Term
- EXW
Quade Monitor Camera System is a Surveillance Products product. Key specs — Origin: 3F, No.18th, HuaYuan St., Shatai Rd., Baiyun distr; Price Term: EXW.
Product Description
Quad Monitor Camera System Product Specification Aluminum Shell Waterproof IR Color CCD Camera(MODEL:DF-8073*4) Image
Type: 1/3 Color SHARP CCD Horizontal Resolution:420TV Lines Effective pixel: PAL:500(H)X582(V) Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark) Free viewing angle: 130° Waterproof: IP66 Shockproof: 10G Video Output:1.0Vp-p75Ω Automatic Heating Below +10oC
Power supply:DC12V from Reversing Monitor
Dimensions: 74(W) x 49(H) x 57(D) mm (without mounting) 7 inches Digital Screen TFT LCD Color Quad Monitor (
Model:SP-737) 7" Digital Screen TFT LCD Color Quad Monitor with Removable Sun Visor Single View/Split View/Quad image View Selectable OSD MENU Separately Set Each Camera Trigger Priority OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30” OSD MENU Separately Set Each Camera Mirror/Normal image Manual and Automatic Switch Display Mode 1 Cable Solution System Make It Easy For Users To Install and Use The Device In Any Places Color System:PAL/NTSC (AUTO) Display Resolution: 2400(H) X 480(V) dot Support Four Camera Inputs:1.0Vp-p75Ω Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65 Brightness (cd/m2): 300 ( Automatically Adjust Environment by According) Contrast ratio: 500:1 Back-light:Single LED Operating temperature: -20℃ to +70℃ Storage temperature: -30℃ to +80℃ Free Operating Voltage DC11-32V (1 Cable Solution) External dimensions:L*W*T(185X124X48)mm(without mounting) Weight Approx: 379g Product Accessories Monitor bracket, 15m cable*4, Electrical connecting cable solution, Auto cigarette lighter.
