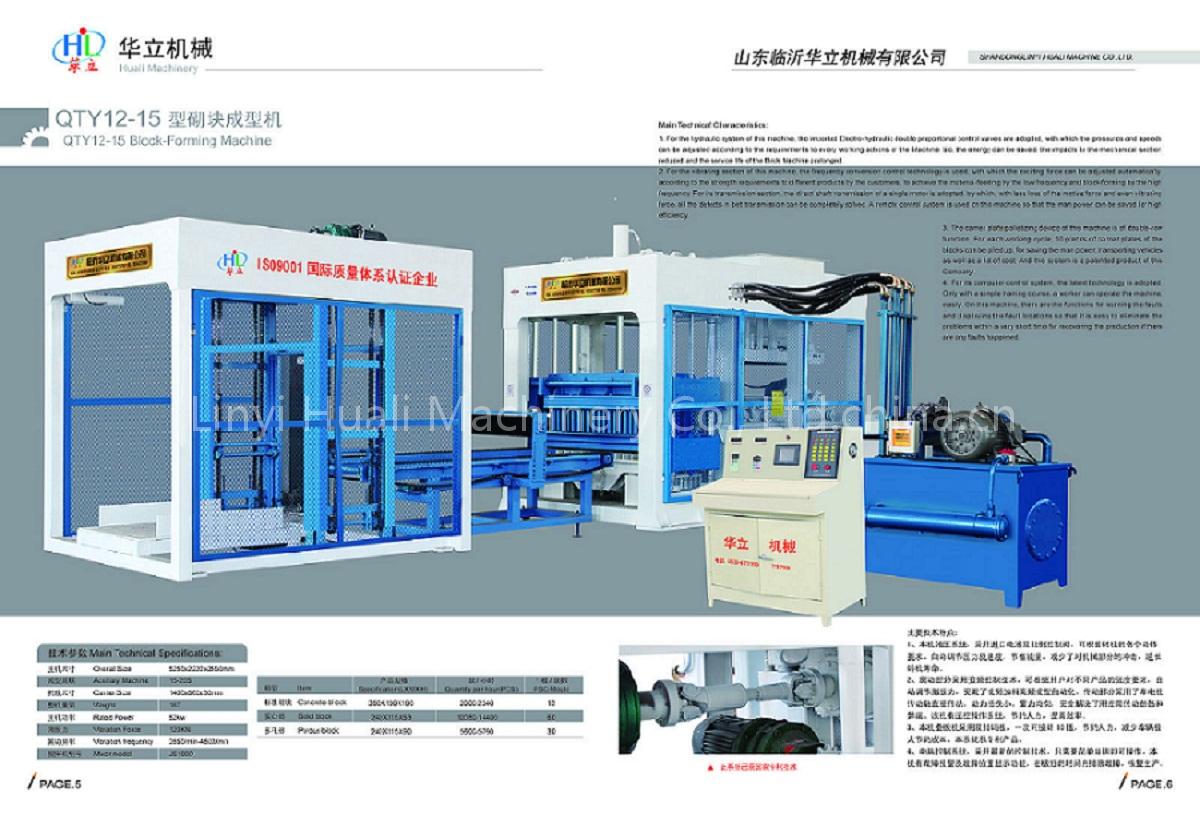

QTY12-15 block machine

DetailedProduct Description for Block machine,Brick machine,Block forming Machine,Block making machine,Brick making machine,Red brick machine,Concrete Block machine,Roll forming Machine1.Hydraulic Automatic brick making machine 2.ISO9001, CE,BV certificate3.Quantity:2000-2340PCS Per hourConcrete hollow block machine,concrete hollow block making machine,hollow block,hollow block making machine,concrete block,concrete block making machineQT12-15 Automatic Brick and Paver Making Machine.Production Output Production per Mould: 12 pcs/mould (Standard Block: 400x200x200mm) 60 pcs/mould (Solid Block: 240x115x53mm) 30 pcs/mould (Hollow Block: 240x115x90mm) Cycle Time: 15-20 seconds Production per Day(8 Working Hours) Hollow Block (400x200x200mm): 16,000-18,720 pcs Solid Block (240x115x53mm): 80,640-115,200 pcs Hollow Block (240x115x90mm): 44,800-46,080 pcs BIG FIVE ADVANTAGES OF Huali Brand AUTOMATIC BLOCK MAKING MACHINESOur machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.1.

Use advanced PLC control system and Touch Screen, use Schneider and Omron relays and contactors: A. Advanced PLC, with great adaptability, guarantees the stability and reliability of the machine; B. Visualization touch screen, with easy operation; C. High-quality electrical components from Schneider and Omron;2.

Use Frequency Conversional Control Technology, which controls the block making: A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency B.

Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working; C. Power saving: 30%;3. Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia; B.

Guarantee production stability;4. 360° Multi-Shaft Rotating and Compulsory Feeding: A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed; B. This uniform feeding is applicable for different kinds of raw materials and moulds;5.

Use heat treatment on moulds and main parts of the machines: A. Heavy duty machine structure and wear resistant moulds; B. The hardness reaches up to HRC 52-58; C. Greatly improves the using lifetime of the machine by 50%....
