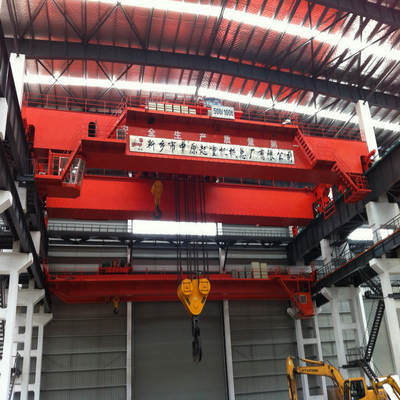

QD Overhead Crane with Hook 500/100T

The lifting capacity of the main hook: 500T The lifting capacity of auxiliary hook: 100T Span: 13m to 31m Lifting height: 20m/22m Working class: A5 The speed of the main hook: 2m/min The speed of the auxiliary hook: 4.7m/min Trolley travelling speed: 26m/min Crane travelling speed: 38m/min The max wheel load: 741kn to 928kn according to difference of the span Total power of the motor: 699kn to 735kn according to the difference of the span Recommended steel track: QU120 Power: 3 Phase 80V 50Hz Structure: Bridge, running gear of the crane, trolley, electrical device, etc.

The operation control is all done in the cabin. It has three ways to enter the cabin: From the side, from the end and from the top. The buffer of the crane can raise about 250mm.

OEM orders are welcome. Your requirements about the products will be highly appreciated.
