Listing ID#10135956
ModelQDX Series
CategoryPumps & Parts
Quick answer
QDX Series Submersible Pumps is a Pumps & Parts product. Key specs — Brand: Xinli; Origin: China.
Product Description

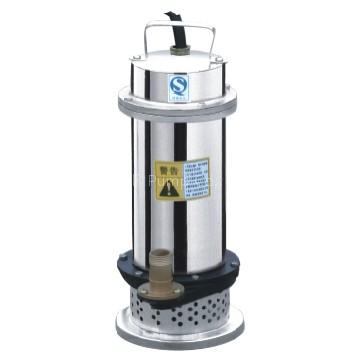

Product Name: QDX Series Submersible Pumps
QDX series submersible pumps are a kind of end-suction submersible electrical motor pumps with close-coupled motor and pump .pumps are of light in weight,durability,rational design,and excellent are suitable for agriculture,mining enterprises,building construction sites and households etc.
The Specifications of QDX Series Submersible Pumps
| Model | RatedFlow | RatedHead | RatedPower | Frequency | RatedVoltage | PipeSize |
| (m3/h) | (m) | (kw) | (r/min) | (v) | (mm) | |
| QDX1.5-16-0.37 | 1.5 | 16 | 0.37 | 2860 | 220 | 25 |
| QDX3-18-0.55 | 3 | 18 | 0.55 | 2860 | 220 | 25 |
| QDX6-14-0.55 | 6 | 14 | 0.55 | 2860 | 220 | 40 |
| QDX10-10-0.55 | 10 | 10 | 0.55 | 2860 | 220 | 50 |
| QDX1.5-32-0.75 | 1.5 | 32 | 0.75 | 2860 | 220 | 25 |
| QDX3-24-0.75 | 3 | 24 | 0.75 | 2860 | 220 | 25 |
| QDX7-18-0.75 | 7 | 18 | 0.75 | 2860 | 220 | 40 |
| QDX10-16-0.75 | 10 | 16 | 0.75 | 2860 | 220 | 50 |
| QDX15-10-0.75 | 15 | 10 | 0.75 | 2860 | 220 | 63 |
| QDX3-35-1.1 | 3 | 35 | 1.1 | 2860 | 220 | 25 |
| QDX10-18-1.1 | 10 | 18 | 1.1 | 2860 | 220 | 50 |
| QDX15-14-1.1 | 15 | 14 | 1.1 | 2860 | 220 | 63 |
| QDX10-20-1.5 | 10 | 20 | 1.5 | 2860 | 220 | 50 |
| QDX15-18-1.5 | 15 | 18 | 1.5 | 2860 | 220 | 63 |
| QDX25-12-1.5 | 25 | 12 | 1.5 | 2860 | 220 | 75 |
| QDX25-14-1.8 | 25 | 14 | 1.8 | 2860 | 220 | 75 |
| QX1.5-32-0.75 | 1.5 | 32 | 0.75 | 2860 | 380 | 25 |
| QX7-18-0.75 | 7 | 18 | 0.75 | 2860 | 380 | 40 |
| QX10-16-0.75 | 10 | 16 | 0.75 | 2860 | 380 | 50 |
| QX40-12-2.2 | 40 | 12 | 2.2 | 2860 | 380 | 75 |
| QX65-8-2.2 | 65 | 8 | 2.2 | 2860 | 380 | 100 |
