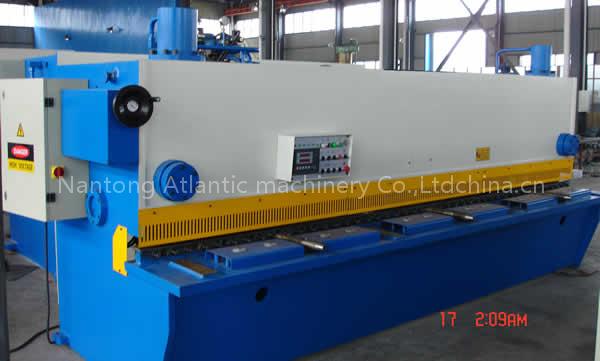

QC11Y-Hydraulic guillotine shearing machine
Specifications
- Brand
- WSD
- Origin
- Haian,China
QC11Y-Hydraulic guillotine shearing machine is a Business Services product. Key specs — Brand: WSD; Origin: Haian,China.
Product Description
Product Description
* It adopts hydraulic driving, the frame steelwelded structure which has sufficient strength and rigidity.
* The machine is equiped with a power back gauge on which, a manual fine-adjusting, mechanism for blade clearance, a shadw light device enribing cutting operatikon, a counter, a sensitive and reliable safety barrier.
* It can also be equipped with a support conveyor.
* Whole steel welded frame with full strength and rigidity.
* Hydraulic upper transport.
* Hydraulic press device with reliable safety bar.
* Rapid cutting stroke adjustment is adopted, shearing angle can be adjusted to ensure priduction efficiency being increased when cutting short sheet.
* Back-gauge station adopts motor-driven measure with fine manual adjustment.
* Cutting counter device.
* Light line device so it is easy to draw line for cutting
Models we did export before
| Model | Maximum shearing thickness mm | Maximum shearing width mm | Shearing angle mm | Plate strength N/m2 | Back gauge range mm | Main motor kw | Dimension (LXWXH) mm | Weight kg |
| QC11Y-8X4000 | 8 | 4000 | 0.5°-2° | 450 | 800 | 11 | 4620X1800X2050 | 9500 |
| QC11Y-8X6000 | 8 | 6000 | 0.5°-2° | 450 | 800 | 15 | 6700X2050X2500 | 19800 |
| QC11Y-12X2500 | 12 | 2500 | 0.5°-2.5° | 450 | 1000 | 18.5 | 3180X1800X2100 | 8200 |
| QC11Y-12X3200 | 12 | 3200 | 0.5°-2.5° | 450 | 1000 | 18.5 | 3980X1950X2310 | 11800 |
| QC11Y-12X4000 | 12 | 4000 | 0.5°-2.5° | 450 | 1000 | 18.5 | 4780X2000X2400 | 15500 |
| QC11Y-12X6000 | 12 | 6000 | 0.5°-2.5° | 450 | 1000 | 30 | 6800X2500X2950 | 28000 |
| QC11Y-16X2500 | 16 | 2500 | 0.5°-2.5° | 450 | 1000 | 22 | 3280X1900X220 | 10000 |
| QC11Y-16X3200 | 16 | 3200 | 0.5°-2.5° | 450 | 1000 | 22 | 3980X2000X2425 | 13500 |
| QC11Y-16X4000 | 16 | 4000 | 0.5°-2.5° | 450 | 1000 | 22 | 4780X2200X2520 | 17800 |
| QC11Y-16X6000 | 16 | 6000 | 0.5°-2.5° | 450 | 1000 | 30 | 6800X2600X3050 | 35000 |
| QC11Y-20X2500 | 20 | 2500 | 0.5°-2.5° | 450 | 1000 | 30 | 3300X2000X2380 | 14000 |
| QC11Y-20X3200 | 20 | 3200 | 0.5°-2.5° | 450 | 1000 | 30 | 4000X2280X2490 | 17000 |
| QC11Y-20X4000 | 20 | 4000 | 0.5°-2.5° | 450 | 1000 | 30 | 4800X2500X3000 | 28000 |
| QC11Y-25X2500 | 25 | 2500 | 0.5°-2.5° | 450 | 1000 | 37 | 3400X2300X2750 | 19000 |
| QC11Y-25X3200 | 25 | 3200 | 0.5°-2.5° | 450 | 1000 | 37 | 4100X2400X2580 | 24000 |
| QC11Y-32X2500 | 32 | 2500 | 0.5°-3° | 450 | 1000 | 37 | 3400X2400X2850 | 22000 |
| QC11Y-32X3200 | 32 | 3200 | 0.5°-3° | 450 | 1000 | 37 | 4100X2550X3000 | 28000 |
| QC11Y-40X2500 | 40 | 2500 | 1°-3.5° | 450 | 1000 | 45 | 3400X2600X3100 | 29000 |
is a jointed venture with investment from HongKong and Germany,founded in 1969,which specialized in making machines for sheet shearing and bending ."Atlantic"brand machines have a good reputation at home and abroad ,machines produced here are with DIN standard.
Details of our company:
| Product Trademark: | "Atlantic" |
| Products we can supply | Shearing machine,Press brake,Rolling machine, cut to length line |
| Standard: | Germany |
| Productivity: | 55 Sets per month |
| Contact person | Xiaohua Shen (Mr.Allen Shen) |
0086-13584714567 |
Here we can ensure good quality and reasonable price machines for you .Welcome your arrival and looking forward to cooperating with you !
