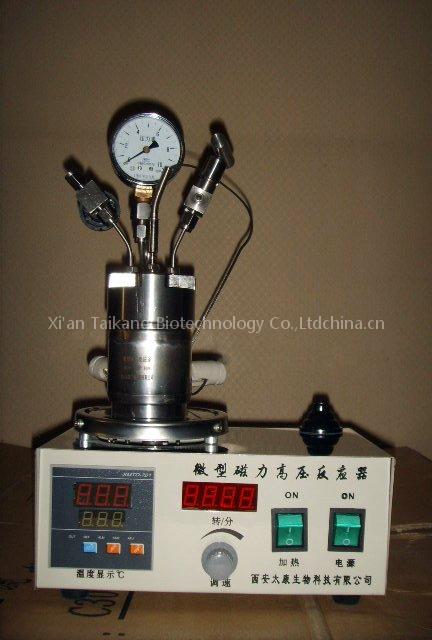

Pure Titanium Mini Magnetic High Pressure Reactor

Deatailed information: 1.Matierial: body : pure titanium/or 316L stainless steel , operating table :316L stainless steel,Pressure resistance:6Mpa. 2.Heating:heat around the reactor directly,easy to operate,heating up fast,easy to use.

3.Working temperature:below 400℃ 4.Heating power:300W-500W, temperature control precision:±1℃ valve pipe are imported from US,and the mouth are standard equipped.

6.stirring speed,digital temperature display:0-1500RPM,stirring speed precision: ±1RPM 7.Choose the patent K-type sensor, be added in inert gas,protect the reaction from air. be added in temperature,pressure,PH value,electric sensor,to ensure precise measurement of the relevant data.

Technical Parameters: Model Material Terms of size Capacity Display Precision Safety Pressure TCGF-25ML Shell made of high quality Titanium φ40*70 25ML ±1℃ ≤10MPa TCGF-50ML φ60*80 50ML ±1℃ ≤10MPa TCGF-100ML φ80*120 100ML ±1℃ ≤10MPa TCGF-200ML φ80*140 200ML ±1℃ ≤10MPa
