Pulse Acupuncture Device 6ch is a Health & Medical product. Key specs — Origin: China.
Product Description

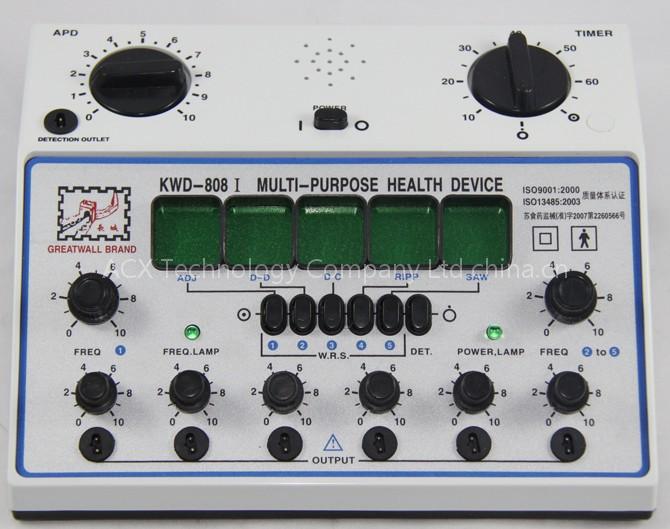

KWD808I - Pulse Acupuncture Treatment Device 6 channels (With acupoints detector) These units are equipped with built-in timer and can perform 5 different kinds of waveform and each waveform is indicated by a symbol which lights up when selected.Adjustable Frequency and IntensityAdjustable Sensitivity probe-Point LocatorBuild-in TimerFive Buttons Wave Form Selection Frequency Indicator Green Led Light Power Green Led Light DC 9V (1.5x6) Size CR14 UM2 BatteryProvide electro-needle therapyAlternative to Hand MassageMusical timing switch for medical treatmentOperating Output Protection DeviceProvide needless acupuncture-pulse electric therapyAssisting to Detect AcupointsMulti-Purpose Health DeviceThere are five types of pulse waves to be selected:(1) Continuous wave (2) Dense-disperse wave (3) Intermittent wave (4) Ripple wave (5) Respiraton waveSix kinds of wave combinations may be used at the same time or separately, and the output of each one may be regulated independently.
In order to increase its effect, combine two or more outputs.
1.Continuous Wave:Pulse duration r = (0.5 0.15)ms; Repeated pulse frequency: f1=( 1 0.5 ) Hz to ( 100 10) Hz. and FREQ1 can be regulated continuously, Max Output pulse amplitude: 40V 10V (Load 500 O.)2.Dense-disperse Wave:Dense & disperse waves display alternatively Disperse frequency is f1, same with base wave; Dense frequency is about 100Hz; Pulse duration is 0.5ms; FREQ2 regulates the frequency f2 of (10 3) cycles per min to (50 =/- 10) cycles per min Max Output pulse amplitude: 40V 10V (Load 500 O.)3.
Intermittent Wave:Pulse shows at regular interval at the same frequency.4.Ripple Wave:Its amplitude increases to maximum and drops to zero suddenly, repeating the process. The frequency: (10 3) cycles /min to (50 10) Cycles/min.
The Max output plus amplitude range is over 5V to 30V( load 500O )5.Respiration Wave:Its amplitude increases first, then drops quickly to zero, repeating the process.
At 1kO load Vp3 = 24V, other pulse data are same as above.Accessories Included: 1 - Acupoints Detecting Probe 8 - Wires with 8 alligator clips 4 - Self-adhesive patches 1 - User's Manual (English/Chinese) 1 - Acupuncture meridians and acupoints chart (English/Chinese) 1 - A/C adaptor for both 110V & 220V
