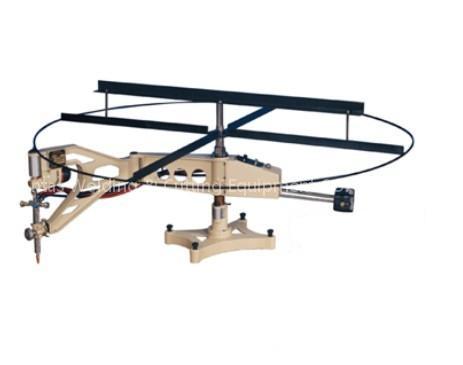

Profiling gas cutter

CG2-150A profiling cutting machine lThe main body is made of aluminium by die-casting minutely.lSpeed system is adjusted by integrated circuit, keeping running steadily.lOxygen acetylene hose is made of high quality rubber for durable use.lVarious kinds of spare parts can be cut as per pattern.lHigh precision in cutting with well smooth surface.lEspecially for batch producing of components in same pattern.lApplied to shipbuilding,oil production,metallurgy, metal structure and other manufacturers etc.lSuitable for field work.

Technical Parameters Model NO. CG2-150A

Overall Dimension mm 1390*335*800

Cutting Thickness mm 6-100

Cutting Speed mm/min 50-750

Dia Circle Cuttingmm Ā20-Ā1800

Length Of Line Cutting mm 1650

Max Size Of Cutting Square mm 1270*1270

Max Size Of Cutting Rectangle mm 1700*340500*1650

Weightkg 61.5
