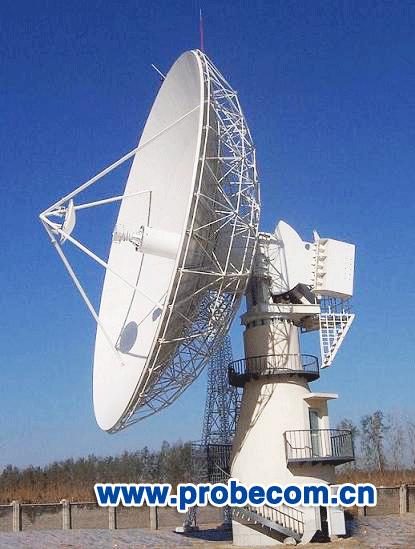

Probecom 16M C/KU Band Satellite Antennas
Specifications
- Brand
- Probecom
- Origin
- China
- Packaging
- export packing
- Price Term
- EX-Work
- Payment Term
- T/T
Probecom 16M C/KU Band Satellite Antennas is a Telecommunications product. Key specs — Brand: Probecom; Origin: China; Packaging: export packing; Price Term: EX-Work.
Product Description
Probecom professional supply 2.4m earth station antenna, 3.0m c band antenna, 3.7m VSAT antenna, 4.5m RX only antenna, 4.5m vsat antenna, 4.5m c band antenna,4.5m ku band antenna,6.2m RX/TX Antenna, 9m satellite antenna, 11m ku band antenna, 11.3m satellite antenna, 13m RX antenna, 16m RX/TX antenna, 16m satellite dish antenna,
Probecom 16M C/KU Band Satellite Antennas Intelsat approved antenna&Customized satellite antenna manufacterur
Features: Meets or Exceeds CCIR 580 and INTELSAT Requirements High G/T, Excellent Pattern Characteristics Thermal Spaying Zinc Steel Ground Mount Assembly C-band Antenna Operating in 800MHz Bandwidth Option 2-port, 3-port or 4-port Linear/Circular Feed Field Changeable Feed System, Switchable Circular to Linear C-band Antenna Az 0-360deg Continuous Pointing Range 16m C/Ku Band Earth Station Antenna specification ELECTRICAL SPECIFICATION: Operating Frequency, GHz C-Band:Rx(3.625-4.2) Tx(5.85-6.425) Ku-Band:Rx(10.95-12.75) Tx(14.0-14.5) Polarization: Linear/ Circular Radiation Pattern:First Sidelobe less than -14, Meet ITU-RS.580-5 and other requirements
MECHANICAL SPECIFICATION: Azimuth ±60° (Continuous) Elevation 0°-90°(Continuous) Polarization 180°(Continuous) Finishes Reflector Surface Pedestal & Back Structure Aluminum panels with high-diffusing white paintThermal Spraying Zinc
ENVIRONMENTAL SPECIFICATION: Operational Wind 72km/h Gusting to 97km/h Survival Wind 216km/h Temperature - 40°C - + 60°C Relative Humidity 100% Solar Radiation 1135Kcal/ h/ m2 Seismic (Survival) 0.3g (H), 0.15g (V)
