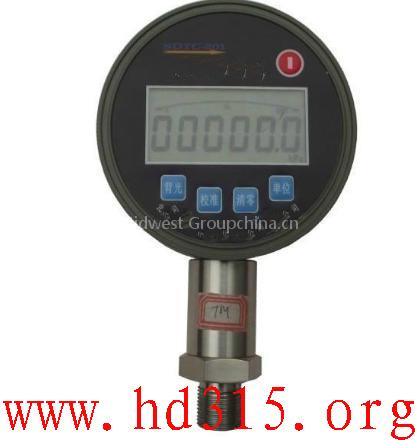

Precision Digital Pressure Gauge

Low-power, high stability of pressure measurement instruments. It is double-testing

of advanced architecture, constant current excitation source means to achieve a very

high stability, low-power precision pressure measurement; the use of single large-

screen LCD, the reading eye-catching and reliable; high and low temperature aging

and temperature compensation technology; 99% confidence level harsh conditions to

ensure product accuracy. SDTC201 mainly used for checking pressure (DP)

transmitter, precision pressure gauge, pressure gauges and other pressure on the

general instrumentation equipment, can also be used on-site inspection, etc.
1, Very low power: three South floating battery (LR6 type) power supply, very

encouraged by constant current source approach can work 24 hours more than 8,000

hours;
2, high stability: the advanced two-measurement architecture to achieve high stability

pressure measurement;
3, with the pressure of the pressure can be set from time to time, or storage functions;
4, RS232 serial communications, and computer communication can be easily
5, as the company's digital pressure sensor calibration and display terminal;
6, zero, two full-scale calibration;
7, computer and keyboard, two kinds of instrument calibration methods;
8, no preheating;
9, mmH2O, mmHg, psi, kPa, MPa, Pa, mbar, bar, KGF and other pressure units

available;
10, when the drift: less than 0.02% within one year.
Indicators:
1 Accuracy: ± 0.05% FS
(2) Temperature range: 0 ~ 50 ℃
3 Pressure range: (-100 ~ 70) MPa
4 three South floating battery (LR6 type) power supply, 24 hours more than 8,000

hours of continuous work
5 Pressure Interface: gauge, vacuum interface, M20 * 1.5
6.RS232 communication, three-wire DB9 connectors.
