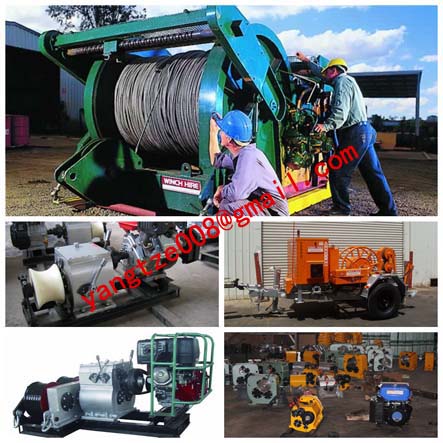

Powered Winches,Cable Winch,cable puller, Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying eletrical cables underground. It apply to hoisting mechanical equipments and erecting pole pylon.

According to different power, include Petrol Engine Powered Winches and Diesel Powered Winches. Application: It is used for tower erection, stringing in electric power line construction. Features: Speedy and Efficient; Safe and Reliable; Compact structure; Small volume; Light in weight; Features Engine can start by switch. Easy operating.

The brake can hold heavy materials when working stopped. Double frame can reduce the machine load from engine vibration. Transmission convert to shift the speed is very easy and smooth. Petrol Engine Powered Winches Cat. No.

QY012-3 QY012-5 QY012-8 Model JMC-3T JMC-5T JMC-8T Petrol Engine GX160 GX390 GX450 Engine Power (Hp) 5 6 9 Rotation Speed（rpm） 3400 3400 3400 Pull (kN)/ linespeed (m/min) I 18/15 I 28/18 I 50/20 Ⅱ 30/8 Ⅱ 50/9 II 80/10 Reverse I 15/13.6 Reverse I 28/16 Reverse I 50/18 Reverse II 30/7 Reverse II 50/8 Reverse II 80/9 Dimensions  (mm) 1200×650×700 1350×750×700 1500×900×700 Weight（Kg） 95 135 195 Diesel Powered Winches Cat.

No.

HT0712-3 HT0712-5 HT0712-8 Model JMQ-3T JMQ-5T JMQ-8T Engine 170F R180 R185 Engine Power (Hp) 3.8 8 9 Rotation Speed（rpm） 2600 2600 2600 Pull (kN)/ linespeed (m/min) I 15/15 I 28/18 I 50/20 Ⅱ 30/8 Ⅱ 50/9 II 80/10 Reverse I 15/13.6 Reverse I 28/16 Reverse I 50/18 Reverse II 30/7 Reverse II 50/8 Reverse II 80/9 Dimensions  (mm) 1200×650×700 1350×750×700 1500×900×700 Weight（Kg） 120 165 225 Electric Powered Winches Cat.

No. HT0713-3 HT0713-5 Model DJMQ-3T DJMQ-5T Motor Motor Power(K W) 3KW 4KW Rotation Speed（rpm） 2600 2600 Pull (kN)/ linespeed (m/min) I 30/4 I 50/3 Ⅱ 15/7 Ⅱ 30/4 Reverse I 30/3 Reverse I 50/3 Dimensions  (mm) 1050×600×600 1200×650×700 Weight（Kg） 75 110 Powered Winches,Cable Winch,cable puller,
