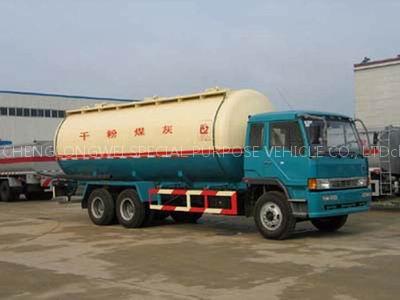

Powder Material Tank truck

FAW Double rear axles Powder Material transportation truck is available for carrying and pressurized discharging dry powder such as fly ash, bulk cement, lime, mineral powder, chemical fertilizer etc. which granule size not more then 0.1mm. The discharge height could reach 15m and convey for 5 meters horizontally. Moreover, the vehicle is widely applied in industry, agriculture, commerce section and architecture.

MAIN SPEC.:
ITEM MODEL&SPEC MANURACTURER
SPECIAL VEHICLE CLQ5251GFLC CHENGLONGWEI
CHASSIS CA1258P1K2L9T1 FAW GROUP
ENGINE CA6DF2-26/CA6DF2-22 FAW GROUP

CHASSIS TECHNIQUE PARAMETERS:
ITEM MODEL&SPEC ITEM MODEL&SPEC
Drive System 6*4 Exhaustion Standard GB3847-1999,GB17691-2001CN2
Emission(ml)/Power(km) 7127/192 7127/162 Tyre & Spare Tyre Spec. 10.00-20
Gross /Rated / Kerb Mass(kg) 25000/12000/12805 No. of Leaf Springs 12/10
Dimension（L*W*H）(mm) 11200/2495/3600 Front/Rear Suspension(mm) 1255/3235
Wheelbase(mm)/Axis No. 5360+1350/3 Approach /Departure Angle 23/9.5
Front/Rear- Gearcase 5T/10T Front/Rear Truck(mm) 1914/1847
Driver Cab Flat head ,one and half row, fully metallic, tilted Clutch Diaphragm Spring, hydraulic remote control, pneumatic servo
Steering-Gears Dual-spoke, power-assisted steering Brake System Pneumatic Braking, Spring Brake, Exhaust Braking
Gearbox D1,2,3,4,5,6 R; Mechanical integer

VEHICLE MODIFIED TECHNIQUE INFORMATION
ITEM MODEL&SPEC ITEM MODEL&SPEC
Cubage（m3） 18 Air Compressor 8m3
Dimension（L*W*H）(mm) 7300*1950 Manufacturer Qualification Measure up (CN standard)
Material Carbon Steel Painting Metallic Paint
Figure Round Steel Spare Parts & Accessories Maintenance Manual, Services Stations List, Introduction, Tools
Technique Index Working pressure 0.2Mpa discharge speed could reach 1.2—1.5t/min, remained ratio ≤2‰. In available condition discharge height could reach ≥25m.
Applied Function The vehicle container could be separated for carrying and storage different kind of powder stuff, with advanced characteristic of high efficiency unloading performance, low remnants ratio, safe and easy operation. Inner tanker is used bag-typed and Asterisk-shaped fluidized bed. Simple designed structure that easy for maintenance, good capability of vulcanization. Vehicle offered 8m3 , 9m3 , 10m3 air compressor for option, with direct drive shaft( strap drive and motor drive optional)
