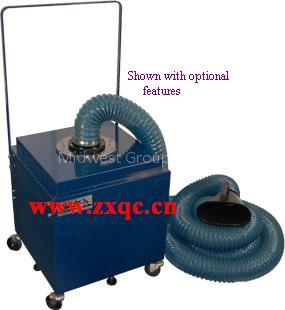

Portable Fume Extractor Model:MWSS-450-PYT

The Model MWSS450 is best used in hard to reach applications where a long hose is needed, such as welding within tanks. This unit utilizes a uniquely designed arm that is both flexible and easy to use. The Arm is designed with flame retardant hose material and a magnetic capture hood with handle.

The magnetic capture hood enables the operator to attach to a surface without having to manually hold the hose in place while capturing the dust, smoke, and/or fumes. The modular design and sturdy construction make it a solid solution for almost any industrial environment application.

All Units combine small size, quiet operation, convenient mobility, and high efficiency filtration to provide an excellent choice for areas where clean air is desired. Typical uses may include welding in tanks, or structures with hard to reach places, maintenance welding, and light grinding dust. This system is highly portable and highly efficient.

SPECIFICATIONS Cabinet Dimensions 20" D x 20" W x 17.25" H Arm Dimensions 6"Dia. x 12'L w/ Magnetic Capture Hood & Handle. NOTE: Optional 25'L Available Weight: 62 lbs to 112 lbs.

(Depends on Filter Media Used) Cabinet Material: 16 ga. carbon steel Motor: 1.5 HP Air Volume: 95% ASHRAE - 950 CFM 99.97% HEPA - 900 CFM Electrical: 115/1/60, 10.6 amps Sound Level: Approx. 72 dba 3&#39 Warranty: Limited two-year warranty Patented Design: U.S. PATENT #5,843,197 U.S.

PATENT #11/956046 Pending All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical).

ACCESSORIES Magnehelic Gauge Variable Speed Controller Quick Change Pre-Filter offers an exclusive line of top quality air cleaners for a variety of applications. For more information on this and other products call us for more information. nbsp;
