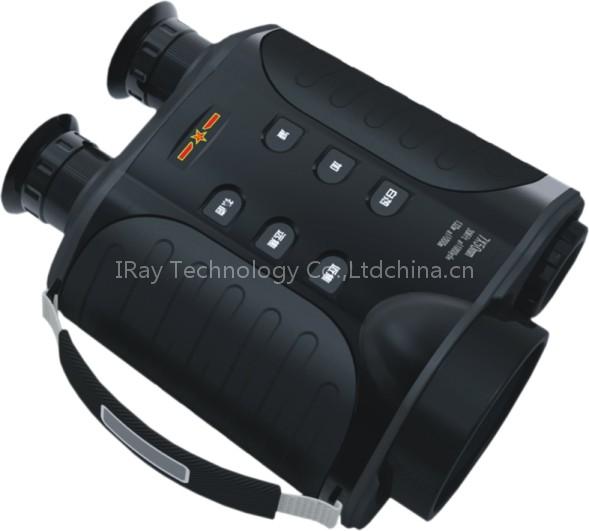

Name: Portable Binocular IR Thermal Imager
Brand: IRay
SKU: IRT307

IRT307 is a new innovation in binocular portable IR thermal imager. Rugged, durable, light-weight and low-power consumption, together with binocular OLED lens, it is your best choice for day & night security surveillance, research and rescue, law enforcement etc. Waterproof, sealed design, shock/ vibration and salt proof guarantee working well in any harsh conditions.

Key Features

nEasy operation and unmatched imager performance

n2× digital zoom, auto shutter compensation

nSealed, waterproof, shockproof

nExtensive configuration: laser range finder, GPS, DMC etc.

Applications

n Search and rescue

n Law enforcement

nSecurity and monitoring

nBorder security

nRoutine Patrols

Range Performance

Imager performance
Detector Material	Uncooled FPA
Spectral Range	8μm~14μm
Pixel Size	320 x 240
NETD	≤45mk
FOV	6.9°x5.2°
Image Presentation
Lens	Ge
Brightness/contrast	Auto & manual control
Polarity	B&W, B&W inverse
Electronic Zoom	X2
Cursor	User-defined
Interfaces
Video Output	PAL/NTSC
Command and Control	RS422/RS232/RS458/Ethernet
Environmental
Operating Temperature	-40â„ƒ to +65â„ƒ
Storage Temperature	-50â„ƒ to +70â„ƒ
Physical Characteristics
Weight	≤1.9kg

Portable Binocular IR Thermal Imager

Specifications
