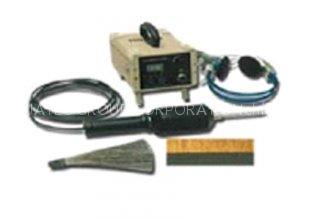

Porosity Holiday Detectors 101

HD-101/102Porosity Detectors are employed in the non-destructive detection and location of pinholes, bare spots or thin points in protective coatings applies for corrosion protection over metal and concrete (conductive) surfaces.
With corrosion an extremely costly and disruptive worldwide problem, preventative determination becomes essential.
For newly constructed tanks, pipelines and other installations, where corrosion prevention coatings have had to be applies, specifications will normally call for a specific coating to a specific thickness. By using a our Detector to verify the competency of the sealing coatings, the contractor can be assures that his coatings responsibility has been met. In terms of cost effectiveness, with the low capital and operating costs of the Detector, the contractor will have some protection from claims at a very low price.

Technical specifications

HD-102 MODE	Parameter	HD-101 MODE	Parameter
Detector range	30um~1mm	Detector range	0.5mm~10mm
Output voltage	30V~1000V	Output voltage	0.5KV~30KV
DC power supply	12V	DC power supply	12V
LCD display	support	LCD display	support
Weight	2.2kg	Weight	2.2kg
Dimensions	130*88*220mm	Dimensions	130*88*220mm

Standard delivery

Item	Qty	Item	Qty
Detector unit	1	Fuse	2
Probe Handle	1	Charger	1
Flat brush	1	Kit case	1
Fan brush	1	Instruction manual	1
Connector for brushes	1	Warranty card	1
