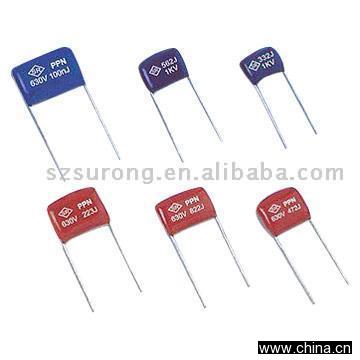

Polypropylene Film Capacitors is a Capacitors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:CBB13 Product
Origin:China Brand
Name:SR
Price Terms:
Payment Terms:FOB, CIF
Certification: Description:
Features:1) Very low loss at high frequency, suitable for high current2) Excellent frequency and temperature characteristics3) High insulation resistance, self-healing effect 4) Widely used in high frequency, DC, AC and pulse circuits
Specifications:1) Reference standard: GB 10188-88 (IEC 60384-13)2) Climatic category: 40/85/213) Rated voltage: 100V, 200/250V, 400V, 630V, 1,000V4) Capacitance range: 0.001 - 1uF5) Capacitance tolerance: ±5% (J), ±10% (K)6) Voltage proof: 2Ur5s7) Dissipation factor: ≤0.08%, 10k Hz8) Insulation resistance: ≥30,000m, CR≤0.1uF≥3,000s, R0.1uF 20oC, 1min
