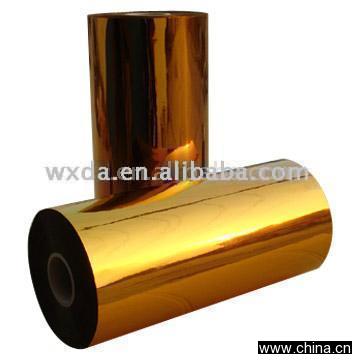

Polyimide Film( 1mil-7mil)

Model No.:6051 Product Origin:China Brand Name:Di'Ao Price Terms:CFR, CIF, FOB Shanghai Payment Terms:T/T, L/C Certification:UL, SGS Description:Structure:Polyimide film is synthesized by polymerizing 4-formic acid-2-anhydride of benzene(PMDA) and 4.4-diamino-diphenyl-ether oxide (ODA) in strong polar solvents throughthe process of forming film and imine treatment at high temperature.Property name: Polyimide film 6051Appearance: Transparent or semi-transparent golden film with smooth and flat surface and withoutany needle cavities, bubbles or electrically conductive impurities.Properties:1) Excellent performance of insulation and mechanism2) Excellent heat-resistance: as low as -269°C and as high as +260°C 3) Excellent chemical stability.

4) Excellent flame retardant property5) Excellent resistance to radiation6) Good radio-resistance, irradiated with R ray of 10-9, its properties unchanged.7) Complex with many materials, moisture protection and corrosion resistance aregreatly improvedSpecifications: 1) Thickness: 0.025 - 0.175mm2) Width: 520, 660mm (can be slit as required)3) Length: 1,500, 2,000m (without joint)4) Full series of grades available Outer packing:1 roll/ctn Carton dimensions: 300 x 600 x 300mm
