Polyester Mesh

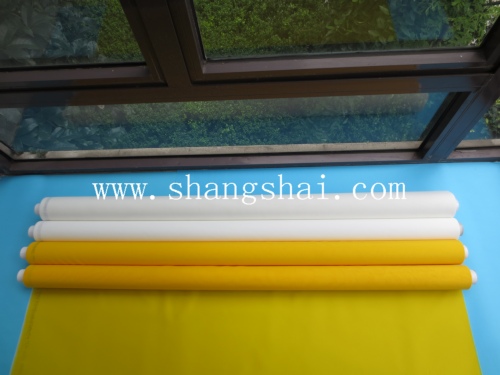

SS-PET 1500 is available in both white and yellow fabrics, ranging from very coarse to ultra-fine in different width up to 3.7m—providing just the right mesh specification for every screen printing application. Excellent stretching properties SS-PET 1500 can be stretched to high tensions, and will maintain tension longer.

Tension loss between stretching and printing is low, and tension will remain stable over subsequent print runs.

Polyester Printing Mesh Model Specification (/cm) Mesh count (mesh/inch) Thread Diameter （um） Mesh opening（um） Open Area（%） Thickness（um） Theoretic Ink Volume (cm3/m2) SS-PET7/1068 7 18 350 1068 56 693 389 SS-PET8/941 8 20 300 941 57 594 338 SS-PET10/743 10 25 250 743 55 495 274 SS-PET12/686 12 30 140 686 68 277 189 SS-PET12/578 12 30 250 578 48 495 239 SS-PET14/489 14 36 200 489 50 340 169 SS-PET15/443 15 38 200 443 47 340 160 SS-PET16/461 16 40 140 461 58 238 139 SS-PET16/404 16 40 200 404 44 340 151 SS-PET16/356 16 40 250 356 34 425 145 SS-PET18/385 18 45 150 385 51 255 131 SS-PET18/357 18 45 180 357 44 306 134 SS-PET20/399 20 50 80 399 69 136 93 SS-PET20/380 20 50 100 380 62 170 105 SS-PET20/333 20 50 150 333 47 255 120 SS-PET20/304 20 50 180 304 39 306 120 SS-PET21/319 21 54 140 319 48 238 114 SS-PET22/356 22 56 80 356 66 136 90 SS-PET24/320 24 60 80 320 63 136 86 SS-PET24/301 24 60 100 301 56 170 95 SS-PET24/282 24 60 120 282 49 204 99 SS-PET24/263 24 60 140 263 42 238 100 SS-PET24/253 24 60 150 253 39 255 100 SS-PET28/263 28 70 80 263 58 136 79 SS-PET28/244 28 70 100 244 50 170 85 SS-PET29/214 29 74 120 214 41 204 83 SS-PET30/203 30 76 120 203 39 204 80 SS-PET32/236 32 80 64 236 61 109 67 SS-PET32/221 32 80 80 221 53 136 73 SS-PET32/202 32 80 100 202 44 170 75 SS-PET32/183 32 80 120 183 36 204 74 SS-PET34/184 34 86 100 184 42 170 71 SS-PET36/188 36 90 80 188 49 136 66 SS-PET36/178 36 90 90 178 44 153 67 SS-PET36/169 36 90 100 169 39 170 66 SS-PET39/191 39 99 55 191 60 94 56 SS-PET39/183 39 99 64 183 54 109 59 SS-PET39/176 39 99 71 176 50 121 61 SS-PET39/168 39 99 80 168 45 136 62 SS-PET39/149 39 99 100 149 35 170 60 SS-PET43/160 43 110 64 160 51 109 55 SS-PET43/145 43 110 80 145 41 136 56 SS-PET47/150 47 120 55 150 53 94 50 SS-PET47/141 47 120 64 141 47 109 51 SS-PET47/135 47 120 71 135 42 121 51 SS-PET51/134 51 130 55 134 50 94 47 SS-PET51/119 51 130 71 119 39 121 47 SS-PET53/127 53 135 55 127 48 94 45 SS-PET53/118 53 135 64 118 42 109 45 SS-PET53/112 53 135 71 112 37 121 45 SS-PET56/117 56 142 55 117 45 94 42 SS-PET56/109 56 142 64 109 38 109 41 SS-PET59/109 59 150 55 109 42 94 40 SS-PET59/100 59 150 64 100 36 109 39 SS-PET61/103 61 155 55 103 41 94 38 SS-PET61/95 61 155 64 95 34 109 37 SS-PET64/96 64 163 55 96 39 94 36 SS-PET64/88 64 163 64 88 32 109 35 SS-PET68/97 68 173 55 87 36 94 34 SS-PET68/79 68 173 64 79 29 109 32 SS-PET72/89 72 183 45 89 42 77 32 SS-PET7286 72 183 48 86 40 82 32 SS-PET72/80 72 183 55 80 34 94 31 SS-PET77/71 77 195 55 71 31 94 29 SS-PET80/76 80 200 45 76 38 77 29 SS-PET80/73 80 200 48 73 35 82 29 SS-PET90/68 90 230 40 68 38 68 26 SS-PET90/63 90 230 45 63 33 77 25 SS-PET90/60 90 230 48 60 28 82 23 SS-PET100/51 100 254 40 51 30 85 26 SS-PET110/48 110 280 34 48 33 58 19 SS-PET110/43 110 280 40 43 26 68 18 SS-PET120/44 120 305 31 44 33 53 18 SS-PET120/42 120 305 34 42 29 58 17 SS-PET120/37 120 305 40 37 18 68 13 SS-PET130/31 130 330 40 31 17 68 12 SS-PET130/36 130 330 34 36 26 58 15 SS-PET140/34 140 350 31 34 25 53 13 SS-PET140/32 140 350 34 32 19 58 11 SS-PET150/34 150 380 27 34 30 46 14 SS-PET150/31 150 380 30 31 23 51 12 SS-PET150/28 150 380 34 28 16 58 9 SS-PET165/29 165 420 27 29 22 46 10 SS-PET165/25 165 420 31 25 16 53 8 Remark:The above datas are theoretic ,please reference the actual datas if there it differs.
