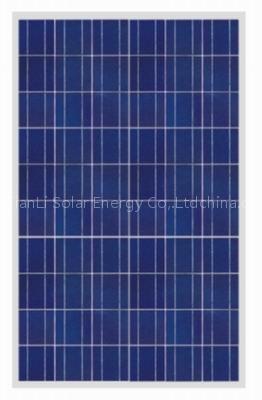

Polycrystal Solar Panel 220W
Specifications
- Origin
- china
Quick answerPolycrystal Solar Panel 220W is a Solar Panels product. Key specs — Origin: china.
Product Description
Product details | | MODEL NO. | TLSP-220P TLSP-210P TLSP-200P | | Maximum Power(W) | 220 | 210 | 200 | | Optimum Power Voltage(Vmp) | 29.28 | 29.28 | 29.28 | | Optimum Operatige Current(Imp) | 7.51 | 7.17 | 6.83 | | Open Circuit Voltage(Voc) | 36.0 | 36.0 | 36.0 | | Short Circuit Current(Isc) | 8.03 | 7.67 | 7.31 | | Solar Cell: | 156*156 Poly | | Number of Cell(pcs) | 6*10 | | Brand Name of Solar Cells | ----Cell | | Size of Module(mm) | 1640*980*40 | | Cable & Connector Type | TUV Certified | | Frame(Material Corners,etc.) | Aluminium-alloy | | Backing (Brand Type) | TPT | | Cell Efficiency for 220W(%) | 15% | | Weight Per Piece(KG) | 18.96KGS | | FF (%) | 70-76% | | Junction Box Type | TUV Certified | | Tolerance Wattage(e.g.5%) | ±5% | | Front Glass Thikness(mm) | 3.2 | | Temperature Coefficients of Isc(%) | +0.04 | | Temperature Coefficients of Voc(%) | -0.38 | | Temperature Coefficients of Pm(%) | -0.47 | | Temperature Coefficients of Im(%) | +0.04 | | Temperature Coefficients of Vm(%) | -0.38 | | Temperature Range | -40°C to +85°C | | Surface Maximum Load Capacity | 2400Pa | | Allowable Hail Load | 23m /s ,7.53g | | Bypass Diode Rating(A) | 12 | | Warranty | 90% of 10 years,80% of 25 years. | | Standard Test Conditions | AM1.5 1000W/ 25 °C | | Packing | 2pcs/carton | | 1*20' | 14 Pallets / 316pcs | | 1*40'STD | 28 Pallets / 756pcs |
| | | |
|
|
|
