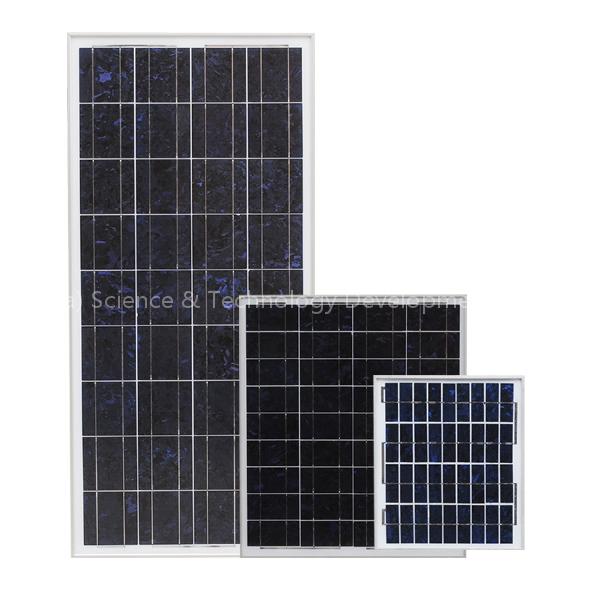

Poly-crystalline Silicon Solar Panel
Specifications
- Origin
- Foshan,Guangdong,China.
Poly-crystalline Silicon Solar Panel is a Solar Panels product. Key specs — Origin: Foshan,Guangdong,China..
Product Description
Technical Specification :
Mode | PPS10W | PPS20W | PPS30W | PPS40W | PPS50W | PPS60W | PPS70W | |
Material | Polycrstalline Silicon Solar Panel | |||||||
Peak Power | 10Wp | 20Wp | 30Wp | 40Wp | 50Wp | 60Wp | 70Wp | |
Peak Current | 0.55A | 1.1A | 1.66A | 2.2A | 2.77A | 3.3A | 3.88A | |
Peak Voltage | 18V | |||||||
Short Circuit Current | 0.61A | 1.21A | 1.83A | 2.44A | 3.05A | 3.66A | 4.28A | |
Open Circuit Voltage | 20.8V | 20.8V | 21V | 21V | 21V | 21V | 21V | |
Chip Quantity | 36 | |||||||
Size(mm) | Length | 360 | 560 | 630 | 630 | 780 | 780 | 1200 |
Width | 290 | 360 | 550 | 550 | 670 | 670 | 550 | |
Thickness | 25 | 25 | 35 | 35 | 35 | 35 | 35 | |
Weight (Kg) | 1.05 | 2.0 | 3.47 | 3.47 | 5.23 | 5.23 | 6.6 | |
Mode | PPS80W | PPS90W | PPS100W | PPS120W | PPS130W | PPS150W | PPS180W | |
Material | Polycrstalline Silicon Solar Panel | |||||||
Peak Power | 80Wp | 90Wp | 100Wp | 120Wp | 130Wp | 150Wp | 180Wp | |
Peak Current | 4.4A | 5A | 5.5A | 6.6A | 3.6A | 4.17A | 5A | |
Peak Voltage | 18V | 36V | ||||||
Short Circuit Current | 4.88A | 5.5A | 6.05A | 7.33A | 3.97A | 4.58A | 5.5A | |
Open Circuit Voltage | 21V | 39.6V | 39.8V | 40V | 42V | 42V | 42V | |
Chip Quantity | 36 | 72 | ||||||
Size(mm) | Length | 1200 | 1200 | 1500 | 1500 | 1600 | 1600 | 1600 |
Width | 550 | 550 | 700 | 700 | 830 | 830 | 830 | |
Thickness | 35 | 35 | 50 | 50 | 50 | 50 | 50 | |
Weight (Kg) | 6.6 | 6.6 | 10.5 | 10.5 | 13.3 | 13.3 | 13.3 | |
Remarks: 1. Test standards: solar spectrum AM1.5, Irradiance: 1000W / M2, the battery temperature: 25oC.
2. To be ordered with different requirements by customers
3. Product specifications are subject to change without notice.
