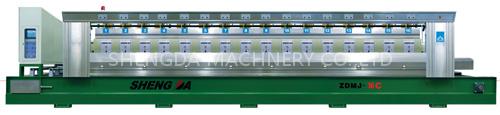

Polishing machine
Specifications
- Brand
- Shengda
- Origin
- China (Mainland)
- Price Term
- FOB
Polishing machine is a Business Services product. Key specs — Brand: Shengda; Origin: China (Mainland); Price Term: FOB.
Product Description
heads No 16
Useful working width Mm 600-2000
Useful working thickness Mm 15-50
Belt advancement speed Mm/min 0-1600
Spindle motor power Kw 11
Total power 181
Water consumption M3/h 25
Overall dimensions(LxWxH) mm 12690x2700x2650.
The No. of grinding and polishing head can make to order by customer.
This machine is for polishing granite and marble slabs. It pre-polish,rough-polish,finish-polish and burnish continuously.
The polish spindle is controlled for counterpressure by a coaxial cylinder according to the stone character. The operator could choose the required speed of crossbeam and belt by an inverter.
PC color touch screen controlled and programmed. Slab profile sensing through sensors.Miniimal raise of polish heads at slab exit and lowering at slab entry without variation of the programmed working pressure. Real time visualization of tools state. The control system inspects and optimizes the movement of polish head, crossbeam and belt to expert polishing. This machine can be controlled by telephone network in long range. Fault diagnosis system and production data statistics makes it more humanized.
