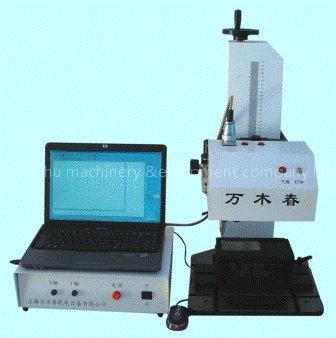

Pneumatic marking machine

WM3-A) Main technical parameters:
Marking machine printing depth 0.01-1mm (as the material may be)
Marking machine printing speed per second 3-5 on the 2nd line of characters or 60mm
Marking the impact of the frequency of needle machine 300 times / sec
Marking machine needle hardness HRA92
Print area: 120 * 80mm
Print marking machine to repeat the accuracy of 0.02mm, printable characters in 1 × 1mm

Pneumatic marking machine environment:
Power Supply: AC220V ± 10%, 50Hz
Temperature: 0 ℃ -40 ℃
Humidity: less than 90%
Compressed air: 0.3-0.5Mpa

Marking machine configurations:
HIWIN imported linear guide drive system M15
Solenoid valve AIRTAC
U.S. HONEYWELL MICRO SWITCH

Laser Marking Machine features:
Economic, affordable! A highly cost-effective models, this pneumatic marking machine for marking a wide variety of parts for use by small and medium-sized enterprises, the company developed software system of marking in WIN98, WIN2000, WINME, XP systems running, to import CAD vector graphics and so on, all Chinese language interface prompt, very friendly, and be free to design the background pattern, reduce the work pressure, the greatest possible consideration to the human and stop, the database features to facilitate marking the contents of the inquiry, serial number compared with the number, at least, the misoperation by the workers.
Division I and the use of video marking machine that easy to learn
