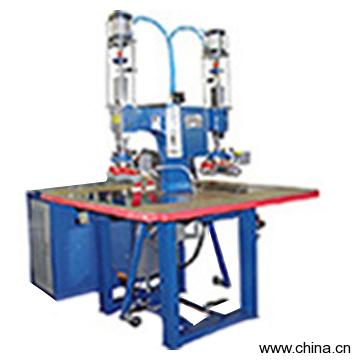

Pneumatic Style High Frequency Machinery
Specifications
- Origin
- China (Mainland)
Pneumatic Style High Frequency Machinery is a Other Plastic & Rubber Machinery product. Key specs — Origin: China (Mainland).
Product Description
Model No.:HR-8000TA Product
Origin:China Brand
Name:HIPOWER
Price Terms:FOB
Payment Terms:T/T
Certification: Description:
Features:1) With double heads and stepping position device2) 5MT air pressure and hydraulic pressure devices3) NL-5557 anti-spark circuit device4) To finish in welding and cutting for one time, with accurate position, smooth edge cutting of leather parts, paper cards and shrink plastic products5) Usage: a) It is suitable for the welding and cutting of small-size paper board and shrink plasticb) It is suitable for the welding and cutting of small-size vamp, shoe sole and shoe materials, also for the cutting of small brand and leather products 6)
Model: WS-5000TK / WS-8000TK 7) Power output: 5,000W / 8,000W; voltage: 50 / 60Hz, AC 380V, 3P 8) Power input: 9kVA, 15kVA 9) Rectifier: silicone rectifier 10) Oscillation tube: 7T85RB / E3185 / 7T69RB 11) Anti-spark thyratron tube: NL-5557 12) Pressure way foot stepping + air-pressure 13) Gap of electrodes: 75mm / 75mm 14) Dimensions of upper board: 120 x 380 /120 x 380 15) Dimensions of lower board: 350 x 500 / 350 x 500 16) N.W.: 700kg
