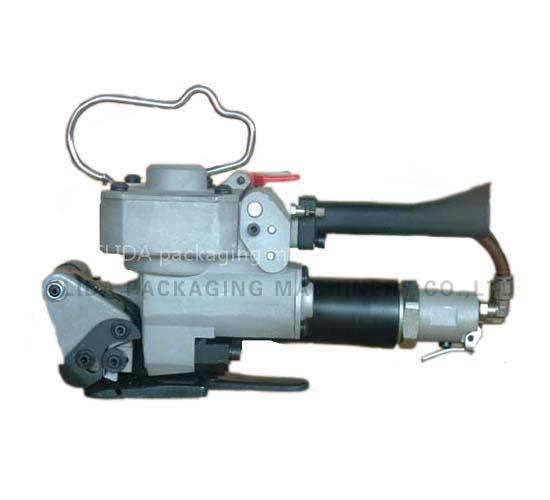

Pneumatic PET plastic metal strap bundling package machine

Type: MV-25

Technical Index: Packaging strap specification: the width is (19-25mm) and the thickness is 0.7mm-1.0mm) weight: 3.8kgs the joint defense coefficient: more than 75% the constriction power: 2800N applicable air pressure: 0.5-0.7MPA Be suited to: polypropylenePP strapand polyesterPET plastic metal packaging strap/enlacing strapwith pneumatic frapping, bonding and cutting the strap.

Pneumatic motor driving and is with low noise and fault. Needs no electrical power and the operation is safe. The machine is light so we can suspend it or hold in hand. The constriction power is large.

Directions: 1this machine is the type of friction hot-melting, through high-speed to reach the goal of overlapping the plastic strap and then agglutination. So it is called friction hot-melting. 2induces the condensation into the cylinder pistol which is connection with the top part of the oscillator via the axis.

The oscillator vibrates come-and-go so as to press the friction slice to make the overlapping enlacing strap agglutinate. 3there is a oval hole in the middle of the oscillator, and the deviating mandrel of the wind-leaf motor rotates in the hole back and forth.

4the pneumatic motor rotates in a high speed and the max speed is up to 10,000rpm so as to make the oscillator move like the pendulum.

5the lower strap is fixed on the board by the triangle tooth-shape of the bottom die; And the higher strap agglutinates with the lower for friction heat from vibration of the oscillator triangle tooth-shape and the friction of the two straps. 6the overlapping part of the enlacing strap is fusing at the joint.

The machine will stop when the vibration time is over, and then the felting is finished. 7The two straps is fixed in high pressure, and we should wait for several second to make sure the felting position cool down.

Plastic metal strap/PET packaging strap is the latest bundling strap which is popular in the international market and it is to replace the steel strapping band, and it is widely used in industries such as steels, aluminum materials, fabric, cotton spinning, tobacco, papermaking, making jar in metal, and so on.

1strong resistant pulling power: It owns not only resistant pulling power like steel strap, but also has ductility which can resist colliding, and can ensure the transportation safety of the products 2small percentage elongation the percentage elongation is just one sixth of the polypropylenes (PP) strap, and can keep the straining power for a long time.

3strong hot bearingthe melting point is 260 degrees, there is no distortion under the condition that the temperature is lower than 120 degrees. 4good flexibility the edge of the strap is not sharp like the metal strap, so its operation is safety and there is no damage to the bundled goods.

5stainless and good-lookingno fault that metal strap polluting the bundled goods and the color is brightness enough to reflect.

6fine economic benefit the length of one ton plastic metal strap is equal to 6 tons metal strap, but the unit price (per meter) is lower than the metal strap, so you can reduce the cost. width: 9-32mm Thickness: 0.5-1.2mm colors: green, black, transparent Surface: smooth or stamping
