Listing ID#10063673
ModelQ641
CategoryValves

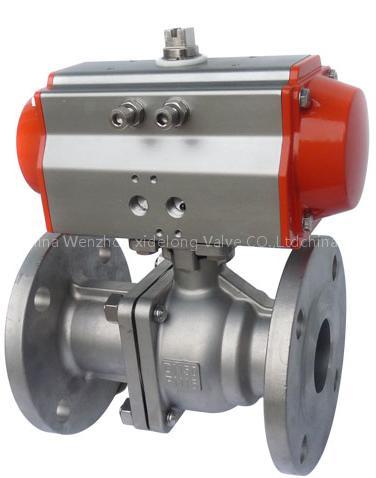

Pneumatic Flange Ball Valve
Specifications
- Brand
- XIDELONG
- Origin
- China (Mainland)
- Price Term
- FOB
Quick answer
Pneumatic Flange Ball Valve is a Valves product. Key specs — Brand: XIDELONG; Origin: China (Mainland); Price Term: FOB.
Product Description
Product Description
The series of ball valve is mainly used in industrial fields of gasoline, chemical, hydraulic, food and beverage, etc.
The ball valve can be operated by pneumatic.
The structure of the ball valve: Two pieces and Flanged type, etc.
The Connection: Flange
Pressure: PN1.6-6.4Mpa, Class 150/300, 10K/20K
Strength testing pressure: PT1.5PN
Applicable media:
Q41F-(16-64)C Water: Oil, Gas
Q41F-(16-64)P Nitric Acid
Q41F-(16-64)R Acetic Acid
Applicable temperature: -40-180 degree.
| Model NO.: | Q641F |
|---|---|
| Standard: | GB, API, DIN etc |
| Unit Price/Payment: | T/T, L/C |
| Trademark: | OEM or SL |
| Origin: | China |
| Min. Order: | One |
| Transportation: | Ningbo or Shanghai |
| Material: | Stainless Steel |
| Connection Form: | Flange |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
