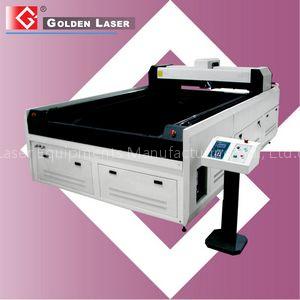

Plywood Laser Cutting Machine

Laser Cutting MachineModel NO.: Product FeaturesWith firm structure, high speed cutting, stable performance.It is much suitable for fast and precise cutting for various large format nonmetal sheets.

Equipped with auto-focus system ensures the best focusing and cutting effect for different thickness materials.Application Field Applicable Materials: Wood, Plywood, Bamboo, MDF, Balsa, Veneer Inlays, Acrylic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Organic Glass, Rubber Sheet, Plastic, Industrial Plastics (PP, PE, PET, PVC, ABS, PA, PS, PC, etc.), Paper, Corrugated Paper, Cardboard, Pressboard, Paperboard, Chipboard, etc.

Applicable Industries: Advertising Industry, Advertising Signs, Plastic Industry, Printing & Packing Industry, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Bangles, Badges, Tags, Decorations, Souvenirs, Precise Ornaments, Model Toys, Architectural Models, Furniture Interiors, Wood Floors, etc.

Technical ParameterLaser type CO2 hermetic and detached laser tube

Laser power 80W

Cutting area 1350mm×2000mm

Cutting table Strip panel working table

No-load max speed 0-18000mm/min

Positioning accuracy ±0.2mm

Motion system Offline stepping control system

Cooling system Water cooling and protection system

Power supply AC220V ± 5% / 50Hz

Image format AI, BMP, PLT, DXF, DST, etc.

Standard collocation One set of 550 up exhaust fan,One set of 1100 down exhaust fan,mini air compressor

Optional collocation Hermetic and detached CO2 laser tube (100W), Automatic control high pressure blower valves,Constant temperature water-chiller

Working Area and laser power can be customized as your requirement. We've designed our product line so that there is a laser system to meet your needs - whether you're looking for an inexpensive, small-format system or a high performance system with a large work area, we've got a system for you.

Advantages of GOLDEN LASER Series:Cost efficiency by the application of low maintenance technologies and maintenance-free sealed CO2 lasers.Engrave and cut a wide variety of materials.Faster speed, higher precision and laser power.High speed Galvo engraving and X-Y axis cutting integrated system.High efficiency engraving and cutting separated system.Unique ultrasonic auto-focus system.Automatic CCD Camera recognizing and cutting system.Metal and non-metal cutting all in one.Highest quality laser motion control system.Complete exhaust and filtering of cutting emissions possible.Ergonomic loading and unloading system without time-consuming.Secured and intuitive control of the systems software-independent.
