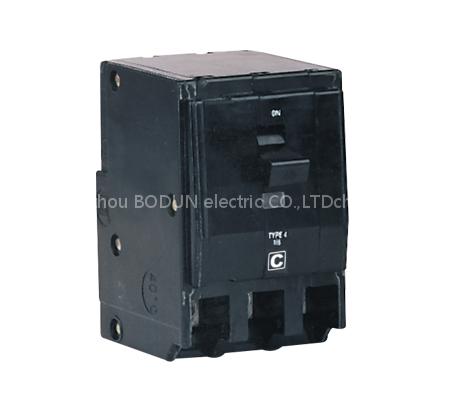

Plug-in Circuit Breakers
Specifications
- Origin
- Zhejiang China
- Price Term
- FOB
Plug-in Circuit Breakers is a Circuit Breakers product. Key specs — Origin: Zhejiang China; Price Term: FOB.
Product Description
Description For protection against overload and short circuits in the electrical distribution system. Use in domestic, commercial and light industrial installations. Description For protection against overload and short circuits in the electrical distribution system. Use in domestic, commercial and light industrial installations., Technical Data Conform to IEC 60898,BS 3871-Pt1 Body material: Glassfiber polyester/Bakelite Rated Current: bakelite 5-100A Rated
Voltage: 120,120/240,240/440V AC Breaking
Capacity: 6kA Frequency: 50/60Hz Degree of protection:IP20 Connection Clamp terminal Mounting: Clips mounting base Specification Overall & Installation Dimensions Technical Data Conform to IEC 60898,BS 3871-Pt1 Body material: Glassfiber polyester/Bakelite Rated Current: bakelite 5-100A Rated
Voltage: 120,120/240,240/440V AC Breaking
Capacity: 6kA Frequency: 50/60Hz Degree of protection:IP20 Connection Clamp terminal Mounting: Clips mounting base Specification Overall & Installation Dimensions Description For protection against overload and short circuits in the electrical distribution system. Use in domestic, commercial and light industrial installations. Technical Data Conform to IEC 60898,BS 3871-Pt1 Body material: Glassfiber polyester/Bakelite Rated Current: bakelite 5-100A Rated
Voltage: 120,120/240,240/440V AC Breaking
Capacity: 6kA Frequency: 50/60Hz Degree of protection:IP20 Connection Clamp terminal Mounting: Clips mounting base Specification Overall & Installation Dimensions
