Listing ID#10096108
ModelSJMM
CategoryOther Plastic & Rubber Machinery
Quick answer

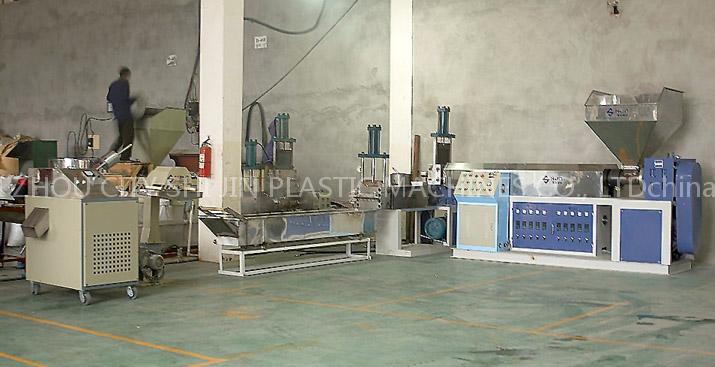

Plastic granulator is a Other Plastic & Rubber Machinery product. Key specs — Origin: Zhejiang.
Product Description
Usage:
Plastic granulator is mainly used for extruding & pelletizing PE, PP-R, ABS and other thermoplastic is equipped with relevant molds and auxiliary machinery to form a production line to produce all kinds of plastic products.
Characteristics:
The charging barrel heating and cooling:
It adopts air cooling system and ceramic belt type heater to precisely control the middle air flow can cool cupper heat radiation sheets which are specially designed and produce high thermal can ensure precise melt noise is very low.
High output:
The special shelter type screw stem can be used in high output extruding. Ensures thermoplastic plastic plastics steadily plasticizing to make it get highest quality screw stem shelter designing can increase the extruding output.
Customize is available.
Plastic granulator is mainly used for extruding & pelletizing PE, PP-R, ABS and other thermoplastic is equipped with relevant molds and auxiliary machinery to form a production line to produce all kinds of plastic products.
Characteristics:
The charging barrel heating and cooling:
It adopts air cooling system and ceramic belt type heater to precisely control the middle air flow can cool cupper heat radiation sheets which are specially designed and produce high thermal can ensure precise melt noise is very low.
High output:
The special shelter type screw stem can be used in high output extruding. Ensures thermoplastic plastic plastics steadily plasticizing to make it get highest quality screw stem shelter designing can increase the extruding output.
This model extruder special reducers for hard surface of this plastic extruder, 38 CrMoAIA nitriding barrel screws, intelligent temperature controllers, special barrel covers( the electricity can be saved, up to 30%). Hydraulic pressure or electric on-line screen-changer, movable stainless steel water tank, blower, rotary pellet-cutter, it can be installed automatic forced feeding equipment.
The master and secondary machines filter the materials twice to ensure high-quality grains and better exhause.
| Model | Master | Secondary | Output(kg/h) | ||||
| Screw diameter(mm) | L/D ratio | Power(kw) | Screw dimeter(mm) | L/D ratio | Power(kw) | ||
| SJMM-80 | 80 | 1:22/1:25 | 22 | 80 | 1:10/1:8 | 7.5 | 120 |
| SJMM-90 | 90 | 1:22/1:25 | 45 | 90 | 1:10/1:8 | 18.5 | 180 |
| SJMM-120 | 120 | 1:22/1:25 | 45 | 120 | 1:10/1:8 | 15 | 280 |
| SJMM-140 | 140 | 1:22/1:25 | 75 | 140 | 1:10/1:8 | 18.5 | 400 |
