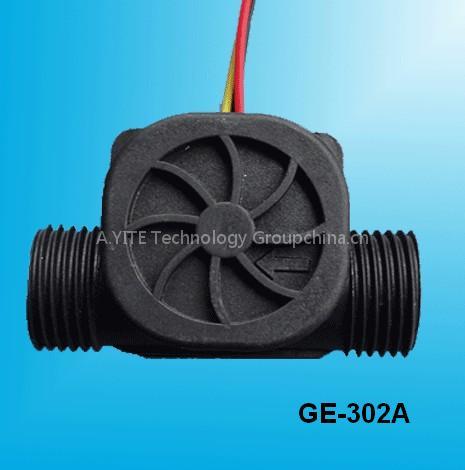

Plastic Water Flow Sensor 3% accuracy

The plastic flow sensor is produced by nylon plastic matrail, stability and low price, widely used in HVAC instrument, water heating systerm, water treatment systerm, to calculate the flow rate.

Specification:

1. PA66 Material, low price and stability

2. Pipe Size: G1/2", G3/4", G1", G1+1/2"

3. Flow Range: 1L/mim ~ 30L/min ~ 120L/min

4. Voltage: DC3V ~ DC18V DC5V is standard

5. Pulse duty factor: 50%

6. Accuracy: ±3%

7. High Level of Pulse Output: >4.5V (DC5V)

8. Low Level of Pulse Output: <0..5V (DC5V)

9. Max Pressure: 17.5bar

10. Hall Component, made in Japan
