Plastic saddle ring saddle ring is the improvement of the characteristics of the different saddle ring packing is to improve the fan into the serrated edge of the arc conchoidal arc, and to increase communication between internal and external surface hole to fill, increasing the freedom of the fluid channel Conducive to the surface of the liquid distribution and updating, so saddle ring than the handling capacity of high and low pressure drop and mass transfer performance has improved.

â˜… Features
Plastic Saddle Ring with pressure drop, high flux, high efficiency, load flexibility, stain resistance.

â˜… Applications
Plastic saddle ring used refined dewaxed oil extraction, off methane, phthalic anhydride purification and so on....

Size		DHT	Surface Area	Void Ratio	Bulk N/Pcs	Bulk Weight	Packing F
Inch	mm	mmmmmm	m2m3	m3m3	n/m3	kg/m3	m-1
0.84"	16mm	168.91.1	370	85	299136	135.6	602.6
1"	25mm	2512.51.4	228	90	81500	97.8	312.8
1.5"	38mm	38191	132.5	91	27200	57.5	175.8
2"	50mm	50251.5	114.2	92.7	10740	54.8	143.1
2.5"	76mm	76383	90	92.9	1480	68.4	112.3

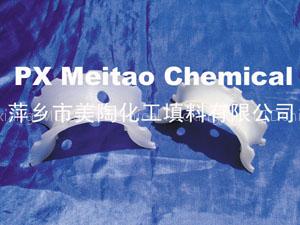

Plastic Super Saddle
