Listing ID#10096033
ModelJP-650
CategoryOther Plastic & Rubber Machinery

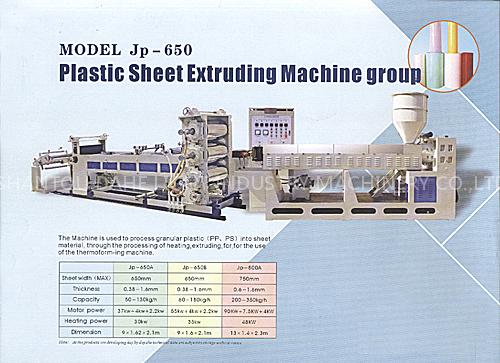

Plastic Sheet Extruding Machine Group (JP-650)
Specifications
- Brand
- Dahe
- Origin
- China
Quick answer
Plastic Sheet Extruding Machine Group (JP-650) is a Other Plastic & Rubber Machinery product. Key specs — Brand: Dahe; Origin: China.
Product Description
1.Applicationof Plastic Sheet Extruding Machine Group (JP-650):
PlasticSheet Extruding Machine Group (JP-650)is used to process granularplastic(PP/PS)into sheet material,through the processing ofheating,extruding,for,for the use of the thermoform-ing machine.
main parameter of Plastic Sheet Extruding Machine Group (JP-650):
PlasticSheet Extruding Machine Group (JP-650)is used to process granularplastic(PP/PS)into sheet material,through the processing ofheating,extruding,for,for the use of the thermoform-ing machine.
main parameter of Plastic Sheet Extruding Machine Group (JP-650):
Type | JP-650 A | JP-65O B | JP-800 A |
Sheet Width(Max.) | 650mm | 650mm | 750mm |
Thickness | 0.38-1.6mm | 0.38-1.6mm | 0.6-1.6mm |
Capacity | 50-130kg/hr. | 60-180kg/hr. | 200-350kg/hr. |
Motor power | 37KW+4KW+2.2KW | 55KW+4KW+2.2KW | 90KW+7.5KW+4KW |
Heating power | 30KW | 35KW | 48KW |
Dimension | 9*1.6*2.1m | 9*1.6*2.1m | 13*1.4*2.3m |
