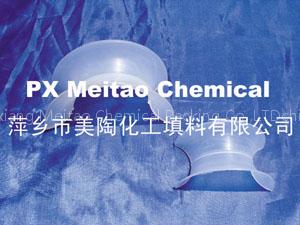

Plastic Saddle Ring is a Catalyst product. Key specs — Origin: China (Mainland).
Product Description
Saddle Rings smooth curved side of the packed bed, the increased contact between the gap filler, to make it more gas and liquid flow in the filler layer and spread with a pressure drop, mass quality and high efficiency.
ã€plastic saddle ring packing geometric characteristics of the data】
Size mm | accumulation of the number of N / m 3 | bulk density kg / m 3 | surface area m 2 / m 3 | porosity | Dry packing factor |
25 × 12.5 × 1.2 | 97680 | 102 | 288 | 84.7 | 473 |
38 × 19 × 1.2 | 25200 | 63 | 265 | 95 | 405 |
50 × 25 × 1.5 | 9400 | 75.2 | 250 | 96 | 332 |
76 × 38 × 2.6 | 3700 | 59.2 | 200 | 97 | 289 |
