Listing ID#10096121
CategoryOther Plastic & Rubber Machinery

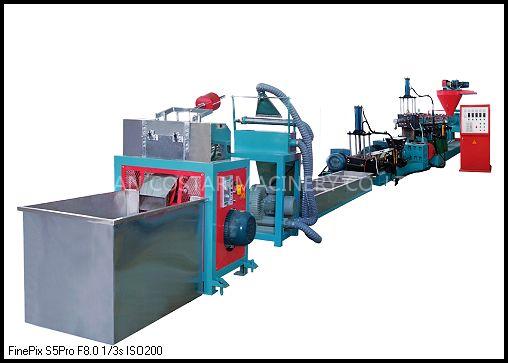

Plastic Regeneration Granulator
Specifications
- Brand
- Kezhida
- Origin
- China
Quick answer
Plastic Regeneration Granulator is a Other Plastic & Rubber Machinery product. Key specs — Brand: Kezhida; Origin: China.
Product Description
| SPECIFICATIONS OF DOUBLE SECTION RECYCLING MACHINE, | |
| MODEL | SJ-RD120 |
| Material Suitable | LDPE, HDPE, LLDPE & PP |
| Output Capacity (max.) | 300kg/h |
| AUTO FEEDER (Screw Feeding) | |
| Motor | 7.5kw VS motor |
| Material Tank Volume | ￠1000mm x 1000mm |
| 　 | |
| 1st Section Extruder | |
| Screw Material | 38CrMoALA |
| Gear Box | 250 Gear box |
| Screw Diameter | ￠120mm×2600mm |
| L/D | 22:1 |
| Main Motor Capacity | 55 KW AC motor Y-△ Pneumatic |
| Temperature Control | 8 zones |
| Filter Screen Changer | Hydraulic Driven, Glass Type (double) screen |
| Filter Screen Changer Motor | 3 KW |
| Diameter for the screen changer | ￠200mm×2 |
| Cooling Air Blower | 0.12kw×4 set |
| For Independent barrel | Stainless steel |
| 2nd Section Extruder | |
| Screw Material | 38CrMoALA |
| Screw Diameter | ￠120mm×1320mm |
| Gear Box | 180 GEAR BOX |
| L/D | 11：1 |
| Main Motor Capacity | 18.5 KW vs motor |
| Temperature Control | 5 zones |
| Filter Screen Changer | Hydraulic Driven, Glass Type (SINGLE or DOUBLE) screen |
| Diameter for the screen changer | ￠200mm |
| Cooling Air Blower | 0.12×2 SET |
| For Independent barrel | For stainless steel |
| Water Tank | |
| Material | Stainless Steel |
| Water Tank Measurement | 4000mm x 400mm x 300 mm |
| 　 | 　 |
| Water Remove Dryer | 　 |
| Blower | Blowing & Sucking |
| Blower Capacity | 3 KW |
| 　 | 　 |
| Cutter (advanced type) | 　 |
| Type of Cutter | drum type rotary blade |
| Motor Capacity | 7.5 kw VS motor |
| Rotary Blade | Made by D2 Steel, 27pcs in one drum |
