Listing ID#10096192
ModelTYF-156
CategoryOther Plastic & Rubber Machinery

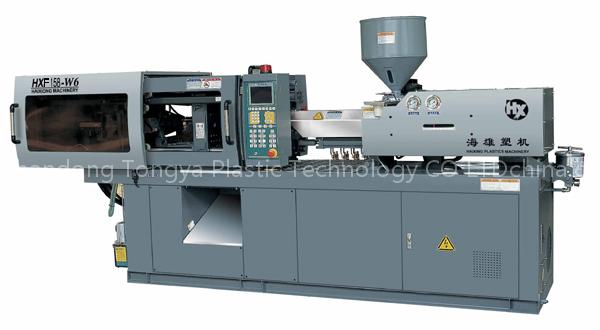

Plastic Injection Machinery TYF-156
Specifications
- Origin
- China
- Price Term
- FOB
Quick answer
Plastic Injection Machinery TYF-156 is a Other Plastic & Rubber Machinery product. Key specs — Origin: China; Price Term: FOB.
Product Description
| TYF-156 | 　 | 　 | 　 | 　 |
| Injection Unit | 　 | A | B | C |
| Screw Diameter | mm | 38 | 42 | 45 |
| Screw L/D Ratio | L/D | 23.1 | 20.9 | 19.5 |
| Injection Capacity Theory | cm3 | 198 | 242 | 278 |
| Injection Weight | g | 180 | 220 | 253 |
| Injection Pressure | Mpa | 248 | 203 | 177 |
| Injection Rate | g/s | 97 | 118 | 135 |
| Platicizing Capacity | g/s | 17 | 21 | 23 |
| Screw Speed | rpm | 230 | ||
| Clamping Unit | 　 | 　 | ||
| Clamping Force | Kn | 1560 | ||
| Moving mould-plate stroke | mm | 380 | ||
| Max.mould height | mm | 430 | ||
| Min. mould height | mm | 170 | ||
| Space between tie-bars | mm | 405x405 | ||
| Hydraulic Ejector Force | Kn | 33 | ||
| Hydraulic Ejector Stroke | mm | 115 | ||
| Ejector Number | n | 5 | ||
| Other | 　 | 　 | ||
| Pump Prssure | Mpa | 16 | ||
| Motor Power | Kw | 15 | ||
| Heating Capacity | Kw | 8.49 | ||
| Machine Dimension | m | 4.82x1.46x1.87 | ||
| Machine Weight | t | 3.8 | ||
