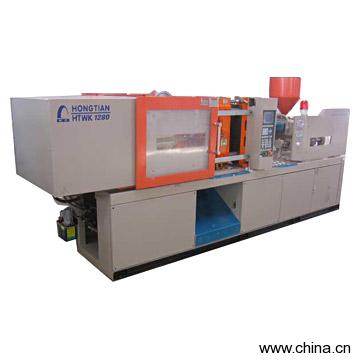

Plastic Injection Machine
Specifications
- Origin
- China (Mainland)
Plastic Injection Machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: China (Mainland).
Product Description
Model No.:HTWK1280F Product Origin:China Brand Name:Hongtian Price Terms: Payment Terms: Certification: Description:Product Name: Plastic Injection MachineModel Number: HTWK1280FPlace of Origin: ChinaSpecifications:Injection unit:1) Screw diameter: 42, 45, 38mm2) Injection capacity: 221, 256, 204cm33) Injection weight: 205, 238, 185g4) Injection rate: 110, 120, 92g/s5) Plasticizing capacity: 19.5, 23, 16.5g/s6) Injection pressure: 170, 149, 209MPa7) Screw speed: 0 - 220rpmClamping unit:1) Clamp tonnage: 1,280kN2) Moulding board movement: 370mm3) Space between tie-bars: 415 x 375mm4) Max. mold thickness: 400mm5) Min. mold thickness: 150mm6) Ejector distance: 120mm7) Ejector tonnage: 40kNOthers:1) Max. pump pressure: 16MPa2) Motor power: 13kW3) Heater power: 7.4kW4) Machine dimensions: 4.4 x 1.36 x 1.8m5) Machine weight: 3.8MT
