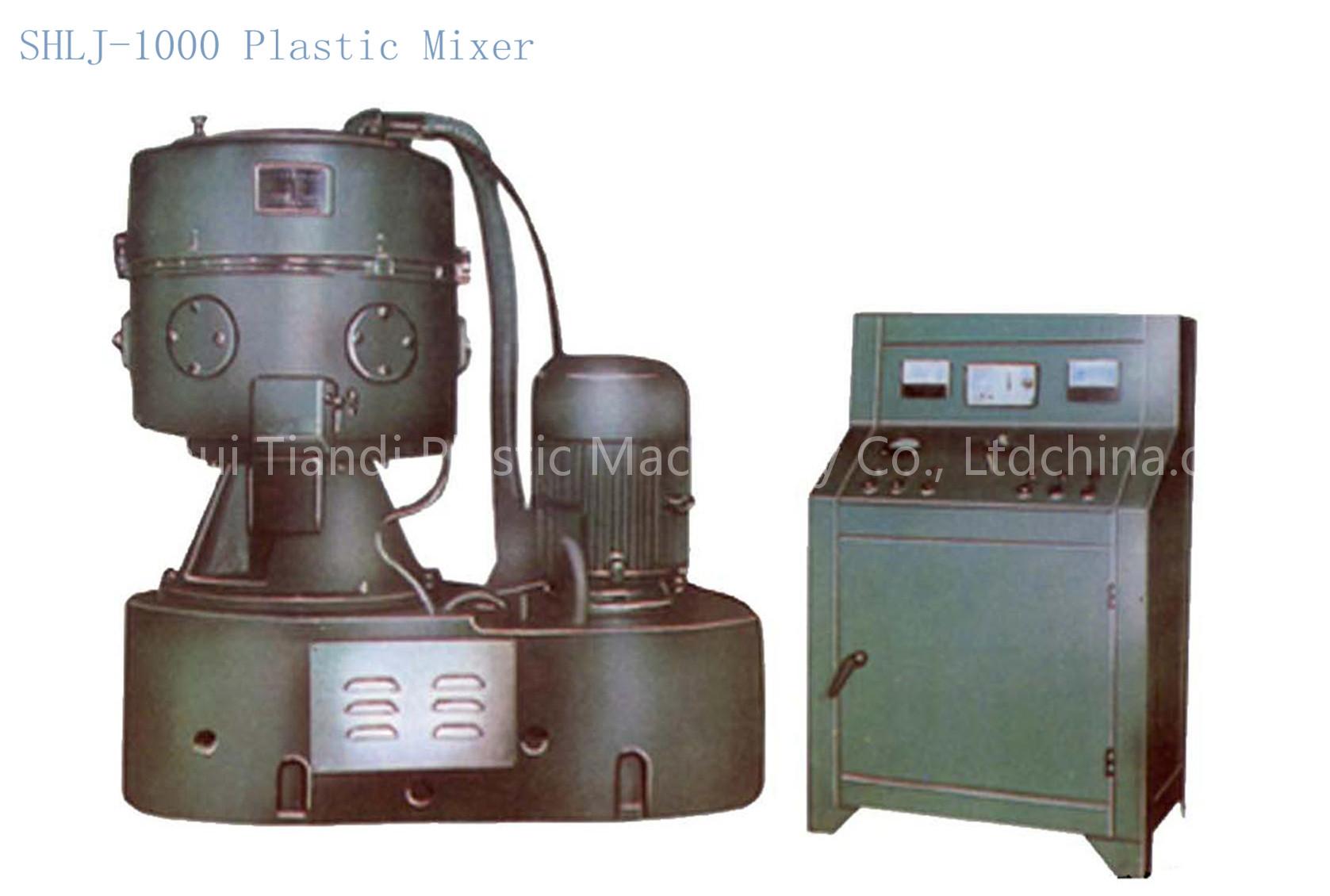

Plastic Heating and Mixiing Machine

Usage:machine combines the principles of grinding rapidly, agitating continuously, milling and fractioning to be heated with multi-knives and cooling and contracting.

It produces granules from waste materials such as the plastic films, filament, ribbons, pieces, soft plastic pipes, foaming materials, and degrading materials, and puts then into reproduction .It is the latest ideal granulating equipment to recycle plastics and reproduce.

2.Advantage:A: Milling, mixture and staining can be processed all in oneB: The machine takes up little area of landC: It is characterized by simple structure and ease of operationD: The interstitial of the blade can be adjusted with convenience of replacing.E: It is characterized by high efficient in production and low consumption(1 ton of daily production ,and 200degrees of electricity consumption ).F: Granulate at lower temperature, do not damage molecular structure of materials basically, and do notdamage physical performance.Technical ParameterCapacity 100L

Production Capacity 30-40kg/h

Revolving Speed of Main Screw 640r/min

Power of Main Motor 18.5kw

Total Power 23.4kw

Dimension 1.57*0.75*1.5m

Weight 2t
