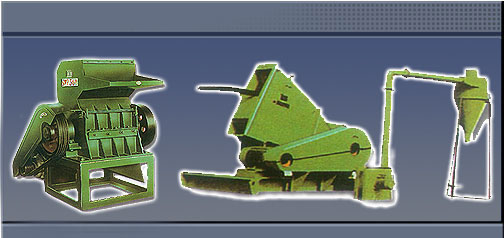

Brief introduction of Plastic Crushing Machine:

There are fifteen kind of Plastic Crushing Machines and nine of them had gained national patcnts, science and technology progress award of national grade.
This series of plastic crushers are mainly used to recycle every kind of waste plastic, model 160 and 320 used to break plastic film, knitting bag, thin and long fibre, threadlike thing, model 880 and 500Q are used to break large plastic board and hollow vessel, model 400 and 630 are used to break plastic window and door profle, model 500Z is used to break big block and thick boards. model 400 and 630 are used to break plastic window and door profle, model 500Z is used to break big block and thick boards.

Technical Parameter of Plastic Crushing Machine:

Model	Spinning blade Steady turning diameter	Rotating blade (piece)	Dead blade (piece)	Aperture of sieve plate	Aperture of sieve plate	Caliber of feeding	Crushing degree	Crushing ratio	Crashing-ration matching power	Overall dimension	Weight of complete machine
SW100	100	2	2	6	6	160×100	3-5	40	2.2	560×370×925	120
SW160A	160	3	2	8	8	254×200	3-6	100	3.7	90×490×1300	305
SWP250	250	6	2	10	10	300×250	3-10	250	5.5	1170×800×1570	410
SWP260	260	3	2	12	12	370×150	3-12	300	5.5	900×730×925	180
SWP320	320	6	2	10	10	510×370	3-10	300	11	1175×850×1632	1063
SWP340	340	3	2	10	10	520×340	3-10	300	11	1400×1032×2540	1450
SWP360A	360	3	2	12	12	520×250	3-12	400	11	1350×1040×1600	750
SWP360B	360	3	2	12	12	520×250	3-12	400	11	1020×1070×1438	760
SWP400A	400	5	2	10	10	375×320	3-10	450	11	2200×910×1860	1450
SWP500Z	500	3	2	10	10	720×650	3-10	500	37	1900×1550×2800	4200
SWP500Q	500	3	2	10	10	630×500	3-10	500	18.5	1600×1400×2600	2500
SWP630	630	3	2	10	10	500×420	3-10	800	30	2710×1300×2840	3500
SWP800	800	10	4	10	10	1000×776	3-10	1000	55	1900×1500×3500	5500
SWP400G	400	6	4	10	10	500×400	3-10	550	15	3700×1950×2400	4115
SWP2000G	2000	1	2	3	3	800×800		2500	55	4220×2700×5500	7350
