Plastic Corrugated Pipe Extruding Machine

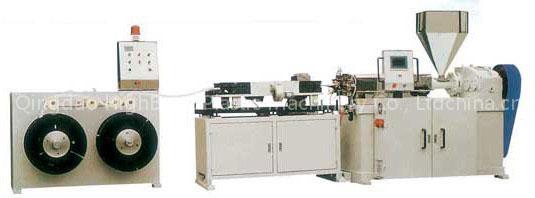

SJBCZ-65×25 Plastic Corrugated Pipe Extruding Machine Unit

The unit matched with SJ65 × 25 model extruder, corrugated pipe forming machine, pipe tyre die, air cooling device, counter and coiling machine can continuously extrude thermoplastic corrugated pipes such as PVC, LDPE, HDPE and so on in various specifications. In a word, the unit integrating the good qualities of international advanced models is the new generation product developed by us.

HDPE Double-wall corrugated pipe extrusion line

I, Configurations:

1, Single-screw extruder

Φ90X33/1 output 350KG/H Main motor power 90kw Central height 1000mm

2, SBG600 extrusion die head

Die head material : 40Cr, quenched and tempered and chrome plating.

Heating Power : 47.5 kw

3, SBG600 Forming Machine

(1) Advantages, Features

Forming machine using closed forming module chain, open design.

Forming Machine adopted to return to work OFF function, using rechargeable devices imported from United States. Batteries are maintenance-free function, this energy guarantees suddenly breaked electricity, the table remains returned, module and die heads water cylinder was turn off.

Machine body can move by single, linkage, and adjust up, down, and horizontal

Main machine adopted DC Motor Speed Control, British Eurotherm 591 digital DC converter device, strong traction, adjusting speed steady, Speed Control widely.

Forming Machine linkage function with main machine.

Module using air-cooled and water-cooled.

(2) Forming Machine main technical parameters :

Central height mm 1,000

Production scope mm Φ40-Φ125

Forming speed m / min 0.5-3

Major motor power kw 5.5

Total power kw 10

Cooling water consumption 8.4m3/h Cooling water pressure Mpa 0.4

Lubricant oil layer Guide oil

Machine weight kg 10,000

Appearance dimensions mm 5230X2300X2680

(The width achieved 3100 including electric motor and electronic control panel )

4, Forming Module

Forming module using special aluminum alloy.

Each specifications modules are 40 pairs with one pair of standby.

5, Cooling spray sizing box : (stainless steel)

Pump power 2.2kw

Cooling box length 4 meters

6, SBG600 Cutting Machine

(1) Advantages, Features

Cutting blades used around without cutting chip, to achieve a smooth,high-speed cutting.

Cutting fixture is equipped with a special adjustable positioning folder blocks, each cutting to ensure the accuracy.

PLC.

Device of strong absorption cutting chip. Equipment installation of two absorption cutting chip framework.

(2) Main technical parameters :

Central height mm 1,000

Cutting pipe diameter mm Φ40 Φ125

Cutting pipe thickness mm 0-60

Suction chip fans power kw 1.5X2

Total Power kw 2.6

Machine weight kg 4000

Appearance dimensions mm 3360X1460X1760

7, Reversal stacker

1table length: 4000mm

2table reversal type: Gas Dynamic

II, Plant requirements:

1.Occupation of land area (length x width x height) : 28X6X3.5meters

(including hot and cold mixture workshop area occupied).

2. Gas consumption 2.0m3/min.

3.Electricity consumption 150kw

actual production of average electricity consumption 260kw.

4. Water consumption 20m3/ h.

III, Assembling, adjustment and after-sell service

1The seller send engineers to help assembling and adjusting equipments in the buyers workshop, the buyer will be responsible for tickets cost and accommodation

2The seller offer One-year quality guarantee for the equipments , the buyer must operate the equipment in proper way(Wearing parts and non-appropriative parts not in warranty. Such as: belts, chains, bearings, blades, etc.)

3The seller offer the buyer directions for producing pipe products and whole set of technics.
