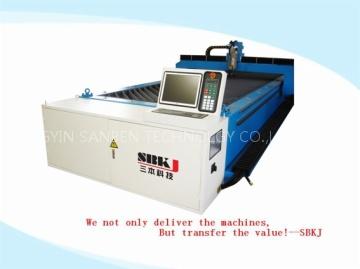

Plasma Cutting Machine

FirstThe frame is of a steel welded construction, with a vibration treated coil to reduce internal stress , thus the frame is of good quality.

X axis adopts high precision line cycle guide ,Y axis adopts high precision line guide which reduces moving resistance ,X and Y axis have been installed with high precision equipment ,in order to guarantee two guide line tolerance of X axis less than 0.05mm and vertical tolerance of X and Y axis less than 0.05mm .The industrial operation system works in DOS either in English or Chinese ,,which can be changed easily .The maximum work-speed of X axis and Y axis is 8m/industrial computer uses standard CNC language and can be programmed.Second Utilizing a stable gasvalue for discharge and gun floating to make the movement more stable and reliable. has a machinery height adjustment device,The torch gun has a float device which can adjust the height of the gun according to the sheet’s level thus keeping the distance between the sheet and the gun constant. system includes a upper main computer and a high efficient industrial computer control system.

Upper main computer uses a DELL LCD and CPU utilizes intel Petium(1GHz);The industrial computer control system utilizes a MISUBISHI servomotor system with industrial control software and a high clarity LCD.

To connect them, a advanced communication system and composing software are used.SBPC-3100 has American HUPERTHERM plasma unit.Main Technical DateType Cutting table(mm) Capacity(mm) Weight(kg) Diminsion(mm)

SBPC-3100 1250×3100 0.4-4 2200 4500×3000×2000
