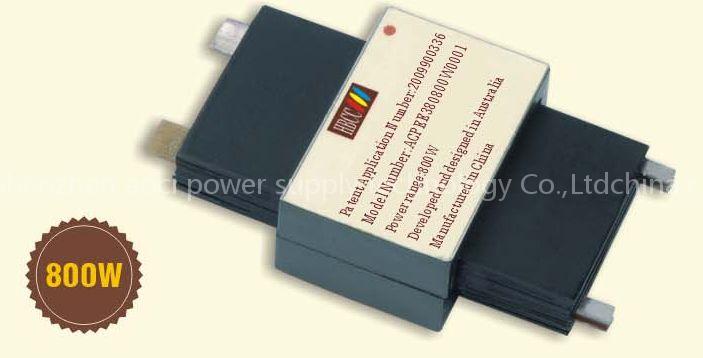

Planar transformer 800w
Listing ID#10048261
ModelACPEE380800W0001
CategoryTransformers
Transformers

Planar transformer 800w

Specifications

Brand
HBCC
Origin
China
Request Quote
Quick answer

Planar transformer 800w is a Transformers product. Key specs — Brand: HBCC; Origin: China.

Product Description

High frequency planar transformer Highly integrated Applicable scope: Communication power supply,UPS power supply,Ultra thin TV, special computer power supply Frequency:100KHz-200KHz input/output voltage:380/48v power efficiency : >98% operating temperature :70 centigrade Weight of the single unit:80g ACPEE380800w0001 length:70mm Max width:38mm Max height:17mm Max
